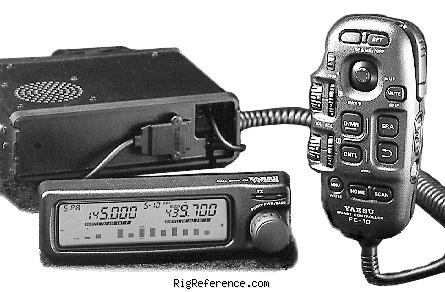

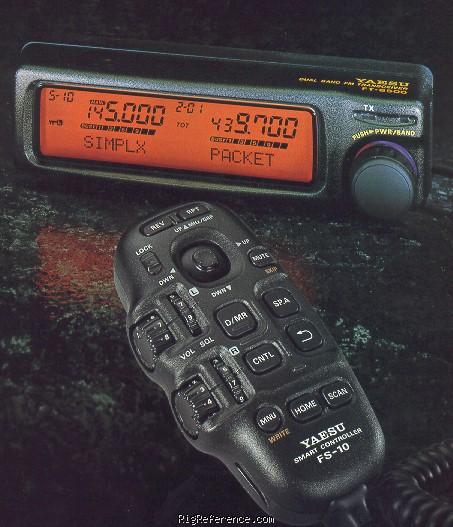

The Yaesu FT-8500 is a mobile VHF/UHF transceiver. Frequency range RX: 110-174 / 410-500 MHz. Frequency range TX: 144-146 / 430-440 MHz (Europe) or 144-148 / 430-450 MHz (USA). RF output: High: 50/35 W, Medium: 10/10 W, Low: 5/5 W. Power requirements: 13.8V DC. Features include 9K6 packet ready and twin RX. Weight: 1.1 kg. Dimensions: 40 × 140 × 160 mm. Current drain RX: Max 1 A. Current drain TX: Max 11.5 A.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 110-174 / 410-500 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA) - Modulations
- FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1 A
- TX
- Max 11.5 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
- Weight
- 1.10 kg (2.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9K6 packet ready. Twin RX
- Accessories
- -
- RigReference ID
- 4360
- MPN
- YAESU-FT-008500
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-8500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-8500 in Good condition is around:
- USD 100
These estimates are based on the following prices:
