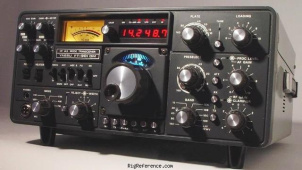

The Yaesu FT-902DM is an excellent HF transceiver covering 160 to 10 meters (and WWV 5 MHz receive). Coverage includes: 1.8-2, 3.5-4, 7-7.5, 14-14.5, 18-18.5, 21-21.5, 24.5-25, 28-28.5, 28.5-29, 20-29.5, 29.5-29.9 MHz. Modes include: LSB, USB, AM, CW, FM and FSK. Passband tuning is continuousely adjustable from 300 to 2400 Hz. Powerinput is 180 watts SSB PEP, 180 watts CW DC and 80 watts AM/FM/FSK. This radio does not have general coverage receive. There is a built-in speaker. Operates from 100/110/117/200/220/234 VAC 50/60 Hz or 13.5 VDC.
The Yaesu FT-902D is similar, but without the keyer, memory unit and DC-DC converter.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB FSK
- Sensitivity
- 0.25 µV (10 dB S/N)
- Selectivity
- SSB: 2.4 kHz (-6 dB), 4 kHz (-60 dB)
CW/FSK: 0.6 kHz (-6 dB), 1.2 kHz (-60 dB) with optional CW filter installed
AM: 6 kHz (-6 dB), 12 kHz (-60 dB) with optional AM filter installed
FM: 12 kHz (-6 dB), 24 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 15-160 m: better than 60 dB 10-12 m: better than 50 dB
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB FSK
- RF-output
- SSB/CW: 100 W, AM/FM/FSK: 80 W
Connections
- Antenna
- SO-239
- Impedance
- 50/75 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- 1.1 A with heater off, 5 A with heater on
- TX
- Max 21 A
Physical
- Dimensions (w×h×d)
- 342 × 154 × 324 mm (13.46 × 6.06 × 12.76 in)
- Weight
- 18.00 kg (39.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 197x and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4370
- MPN
- YAESU-FT-000902DM
