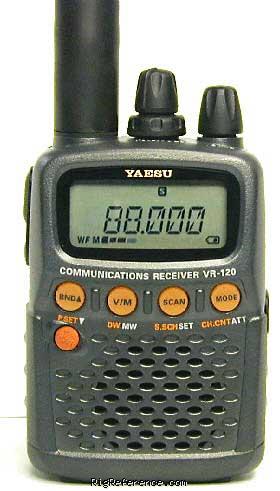

Yaesu VR-120D

Handheld HF/VHF/UHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (1) Compare

The Yaesu VR-120D is a handheld HF/VHF/UHF scanner/receiver. Frequency range is 0.1-1300 MHz (Cellular blocked in the US). It features alpha tags, "frequency finder", dual watch and built-in ferrite bar for MW reception. The radio has 10 memory banks and 640 memory channels. Power requirements are 2.2-3.5V DC (2R6/AA) or 5.5-10V DC (external). Dimensions are 85 × 59 × 26 mm. Weight is 195 gr. Current drain in receive mode is 15-95 mA.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: 640 channels in 10 bank(s)

Receiver

RX-range: 0.1-1300 MHz (Cellular blocked in the US)
Modulations: AM FM W-FM
Sensitivity: AM (10 dB S/N)
0.2-5 MHz: 1.5 µV
5-160 MHz: 0.6 µV
160-370 MHz: 0.6 µV
FM (12 dB SINAD)
5-520 MHz: 0.3 µV
520-1300 MHz: 0.7 µV
W-FM (12 dB SINAD)
5-160 MHz: 0.9 µV
160-370 MHz: 0.6 µV
370-520 MHz: 1.0 µV
520-1300 MHz: 3.0 µV
Selectivity: AM/FM: 16 kHz (-6 dB)
W-FM: 200 kHz (-6 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 2.2-3.5V DC (2R6/AA) or 5.5-10V DC (external)
Current drain RX: 15-95 mA
TX: -

Physical

Dimensions (w×h×d): 59 × 85 × 26 mm (2.32 × 3.35 × 1.02 in)
Weight: 195 gr (6.9 oz)
Form factor: Handheld
Manufactured: Between 2001 and 200x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: Alpha tags. "Frequency finder". Dual watch. Built-in ferrite bar for MW reception.
Accessories: -
RigReference ID: 4388
MPN: YAESU-VR-000120D

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu VR-120D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu VR-120D in Good condition is around:

AUD 169

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2011	AUD 250.00	New / Mint	Mike
