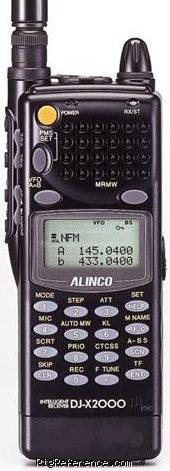

The Alinco DJ-X2000 provides sophisticated wideband coverage on the go. Coverage is 100 kHz to 2150 MHz (less cellular frequencies) in LSB, USB, CW, AM, NFM and WFM. 2000 Memories are organized in 40 banks of 50 channels each. A triple conversion circuit is employed and 10 p.p.m. stability is provided. The Instant Search features locks onto the nearest, strongest signal. The Channel Scope feature displays signals within a 40 channel or 7 channel range at one time. This function shows spectrum occupancy at a glance.
The frequency counter uses a digital TCXO, accurate to 1 p.p.m.. You can record up to 160 seconds of audio in digital memory. Enjoy FM stereo to the headphone jack (headphones not provided). CTCSS decoder/tone scan is built-in. Your even get a 24 hour timer. The informative LCD gives you the exact status of the receiver. A built-in digital audio recorder stores nearly 3 minutes of received audio (or built-in mike for playback). The DJ-X2000T is PC programmable. The software is available for free download from the link below or from the Alinco web site. The optional ERW-4C serial cable is required.
The Alinco DJ-X2000K model is the same as above, but without the 816-902 MHz cellular gap and can be purchased via government or qualifying commercial purchase order or for export only.
General characteristics
- HAM bands
- ?
- Frequency stability
- 10 ppm (-10 to +50C.)
- Tuning steps
- 0.05 / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 20 / 25 / 30 / 50 / 100 / 125 / 150 / 200 / 250 / 500 kHz
- Memories
- 2000 channels in 40 bank(s)
Receiver
- RX-range
- 0.1-2150 MHz (less cellular in the US)
- Modulations
- AM N-FM W-FM CW SSB USB LSB
- Sensitivity
- 0.1-5 MHz: 1.5V AM, 0.6V CW/SSB
5-900 MHz: 1.0V AM, 0.5V CW/SSB
900-2150 MHz: 1V AM, 2V NFM, 4V W-FM - Selectivity
- SSB/CW ? kHz, AM/N-FM ? kHz, W-FM ? kHz -6 dB
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- 1st: 814.5 /304.34 MHz
2nd: 45.05 MHz
3rd: 455 kHz (10.7 MHz W-FM) - Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 4.8-6V DC internal or 10-16V DC external
- Current drain RX
- 50-150 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 57 × 150 × 28 mm (2.24 × 5.91 × 1.10 in)
- Weight
- 320 gr (11.3 oz)
- Form factor
- Handheld
- Manufactured
- Between 2001 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Two-mode bug detector
Instant search function locks onto the nearest, strongest signal
Frequency counter
160 seconds of digital recording
Speech descrambler (excluded in US version) CTCSS
Low power transceiver function - Accessories
- -
- RigReference ID
- 2298
- MPN
- ALINCO-DJ-X002000
Manuals, diagrams and brochures
- Alinco DJ-X2000 programming software EXE - Unknown size, submitted by RigReference
- Alinco DJ-X2000 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DJ-X2000 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-X2000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Alinco DJ-X2000 is around:
- USD 27.00
- AUD 38.00
These estimates are based on the following prices:
