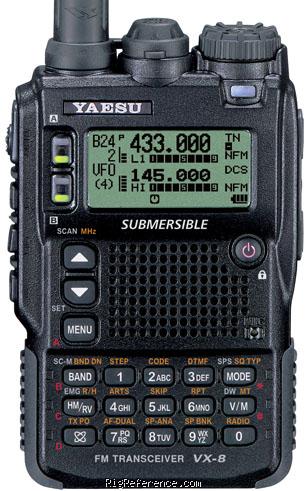

The Yaesu VX-8R HT (Handy Talky) provides a full 5 watts FM on 50/144/430 MHz plus 1.5 watts on 222 MHz (USA version only). It supports Bluetooth® hands-free operation with the optional BU-1 and BH-1 or BH-2 accessories. There is also an optional GPS unit and antenna with loads of features. This radio supports APRS 1200/9600 bps data communication (B band only). Like the Yaesu VX-7R, the VX-8R is submersible and meets IPX57 specifications (3 feet for minimum of 30 minutes). A powerful 7.4 V 1100 mAh Lithium Ion battery is included. This handheld is small and intuitive to operate. It supports simultaneous independent 2-signal dual receive function with both V + V or U + U. It has weather band receive with Weather Alert. A barometric sensor is included. You can even operate Amateur radio while receiving FM broadcasts! The receive coverage is wider than VX-7R, with an independent AM/FM broadcast receiver circuit. The dot matrix LCD display provides Memory tag up to a maximum of 16 characters. You even get a high-resolution Spectrum Analyzer with ±60 channels indication with wave monitoring of received/modulated signal! And DCS and CTCSS encode and decode is standard.
Yaesu VX-8R: USA version
Yaesu VX-8DR: Improved USA version (2010), mostly APRS functionality
Yaesu VX-8E: European version
Yaesu VX-8DE: Improved European version
General characteristics
- HAM bands
- 6m 2m 70cm
- Frequency stability
- ±5 ppm +14 °F to +122 °F (-10 °C to +50 °C)
- Tuning steps
- 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
- Memories
- 1267 channels in 24 bank(s)
Receiver
- RX-range
- 0.5-999 MHz (less cellular in the US)
- Modulations
- AM FM W-FM
- Sensitivity
- 3.0 µV for 10dB S/N (0.5-30MHz, AM)
1.0 µV for 12dB SINAD (76-108 MHz/174-222 MHz/470-729MHz, W-FM)
0.16 µV for 12dB SINAD (50-54MHz/144-148MHz, N-FM)
0.18 µV for 12dB SINAD (430-450 MHz N-FM) - Selectivity
- 12 kHz/35 kHz (N-FM)
200 kHz/300 kHz (W-FM)
(±6dB/±60dB) - Filters
- ?
- Receiver system
- N-FM, AM: Double-conversion W-FM: Triple Conversion AM/FM-radio: Single Conversion
- IF-frequencies
- 1st: 47.25 MHz (N-FM) [46.35 MHz Sub Band] / 45.8 MHz (W-FM)
2nd: 450 kHz (N-FM) / 10.7 MHz (W-FM) / 1 MHz (W-FM) - Image rejection
- ?
- Audio output
- 200 mW @ 8 Ohms for 10% THD (@ 7.4 V DC)
Transmitter
- TX-range
- 50-54 / 144-148 / 222-225 (USA only) / 430-440 MHz
- Modulations
- FM
- RF-output
- 1.5 / 5 W
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 7.4V DC (1100 mAh Lithium Ion pack) 3R6/AA dry cell case option.
- Current drain RX
- 200 mA max
- TX
- 1.9 A max
Physical
- Dimensions (w×h×d)
- 60 × 95 × 24.2 mm (2.36 × 3.74 × 0.95 in) without knob and antenna
- Weight
- 240 gr (8.5 oz)
- Form factor
- Handheld
- Manufactured
- Between 2008 and 201x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Alpha tags
Barometric sensor
Bluetooth and GPS options
Built-in packet modem 1200/9600bd with APRS support
CTCSS/DCS
Repeater shift: ±600 kHz (144 MHz) / ±1.6 MHz (220 MHz) / ±1.6/5.0/7.6 MHz (430 MHz)
Spectrum display
Twin RX.
Waterproof/submersible (IPX57)
Weather alert - Accessories
- -
- RigReference ID
- 4401
- MPN
- YAESU-VX-000008R
Manuals, diagrams and brochures
- Yaesu VX-8R/E Brochure PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu VX-8R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu VX-8R in Good condition is around:
- EUR 226
- USD 297 ~ USD 345
These estimates are based on the following prices:
