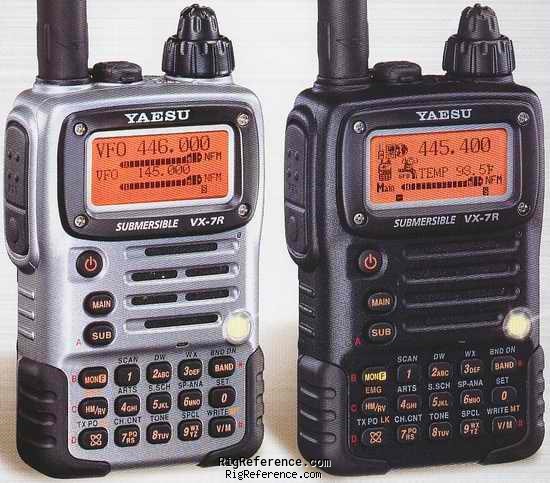

The Yaesu VX-7R is a high quality, rugged handheld transceiver. It offers triple band (6m, 2m, 70cm) operation and the USA version even transmits 300mW on the 220MHz band.
The VX-7R was followed by the Yaesu VX-8R handheld in 2008.

General characteristics

HAM bands
6m  2m  70cm
Frequency stability
?
Tuning steps
?
Memories
500 channels in 1 bank(s)

Receiver

RX-range
0.5-999 MHz (Cellular blocked in the US)
Modulations
AM   FM   W-FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
50-54 / 144-146 / 430-440 MHz (Europe)
50-54 / 144-148 / 222-225 / 440-450 MHz (USA)
Modulations
AM   FM
RF-output
High: 5/5/5 W, Low3: 2.5/2.5/2.5 W, Low2: 1/1/1 W, Low1: 0.5/0.5/0.5 W, 0.3 W (220 MHz, FM), 1 W (50 MHz, AM)

Connections

Antenna
SMA
Impedance
50 Ω
Other
-

Electrical

Power requirements
7.2V DC (internal), 10-16V DC (external)
Current drain RX
25-200 mA
TX
0.6-1.8 A

Physical

Dimensions (w×h×d)
60 × 90 × 28 mm (2.36 × 3.54 × 1.10 in)
Weight
250 gr (8.8 oz)
Form factor
Handheld
Manufactured
Between 2002 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
Waterproof/submersible. Twin RX
Accessories
-
RigReference ID
4400
MPN
YAESU-VX-000007R

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
B03 modified it is an apocalypse swiss army knife! 1 year ago by Lukas Thorwald Hey
vx7r 9 years ago by ken

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu VX-7R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu VX-7R is around:

  • EUR 115.00 ~ EUR 199.00
  • USD 115.00 ~ USD 115.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2018 EUR 200.00 Used / Okay Lukas Thorwald Hey
2018 EUR 200.00 Used / Okay Lukas Thorwald Hey
2013 USD 349.95 Used / Good universal-radio
2010 USD 290.00 New / Good universal-radio
2010 EUR 289.00 New / Good thiecom.de
