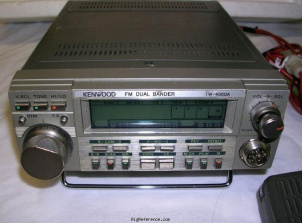

Kenwood TW-4000

Mobile VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Kenwood TW-4000 rigs and spare parts on eBay Find the Kenwood TW-4000 on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
144-146 / 430-440 MHz (Europe)
TX-range
144-146 / 430-440 MHz (Europe)
HAM bands
2m  70cm
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
0.17 µV (12 dB SINAD)
Selectivity
14 kHz (-6 dB), 28 kHz (-60 dB)
Receiver system
?
IF-frequencies
?
Image rejection
>70 dB
Audio output
?

Transmitter

Modulations
FM
RF-Output
High: 25/25 W, Low: 5/5 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC +/- 15%
Current drain RX
600 mA (no input signal)
TX
Max 7.5 A

Physical

Dimensions (w×h×d)
161 × 60 × 217 mm (6.34 × 2.36 × 8.54 in)
Weight
2.00 kg (4.4 lbs)
Form factor
Mobile
Manufactured
Between 1983 and 19xx
MPN
KENWOOD-TW-004000

Other features

Memories
10 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

Kenwood TW-4000 Schematic Diagram submitted by RigReference
