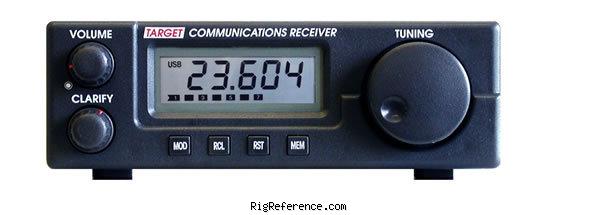

NASA Target HF3 Mobile Shortwave Scanner / receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Until now quality single side band receivers have only been available at high cost. The Target HF3 is a masterpiece of R.F.Engineering covering the entire spectrum between 30Khz to 30Mhz. For those new to single side band reception the unit comes complete with everything needed to "get on the air" including a very comprehensive instruction manual which includes a list of useful marine frequencies. A button on the front of the receiver changes reception mode, from a narrow filter for SSB reception to a wide filter which enables high quality audio signals to be heard from broadcast stations around the world. The large, clear liquid crystal display shows the precise frequency tuned to and there is no need for constant "correcting" with the tuning knob so often associated with SSB signals as the receiver if fully synthesized.

The HF3/W version of the receiver is as the standard Target HF3(/P) but with the addition of a weatherfax interface, together with cable to connect the receiver to a PC and weatherfax software. Simply install the Windows based software, plug in the receiver output to your PC and receive weatherfax pictures from around the world. You can even store and print the maps out if you wish. The software enables reception of weatherfax pictures, Radiotelex weather forecasts and Navtex.

Also sold as AKD HF3 and Lowe SRX-100.

Frequency range

RX-range
0.03-30 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
1/10/100/1000/10000 kHz
Filters
-

Receiver

Modulations
AM   USB   LSB
Sensitivity
AM
0.05-15 MHz: ~2.5 µV
15-30 MHz: ~3.5 - 4.5 µV
SSB
About three times better than AM
Selectivity
AM: 6 kHz
SSB: 3.8 kHz
Receiver system
Demodulator: AM Quasi Synchronous SSB: Product detector
IF-frequencies
-
Image rejection
-
Audio output
2 W

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
12V DC
Current drain RX
300 mA
TX
-

Physical

Dimensions (w×h×d)
180 × 58 × 170 mm (7.09 × 2.28 × 6.69 in)
Weight
1.80 kg (4.0 lbs)
Form factor
Mobile
Manufactured
Between 1997 and 20xx in by R.F.Engineering
MPN

Other features

Memories
10 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Clarity control for SSB ±800Hz
RS-232 computer interface (HF-3E only)
Accessories
-
