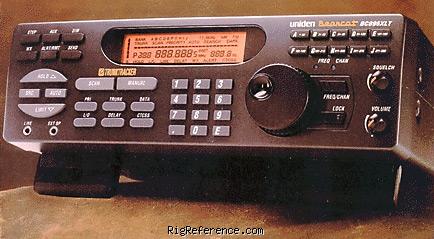

Uniden-Bearcat BC895XLT

Mobile VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?

Receiver

RX-range
29-54 / 108-174 / 216-512 / 806-912 MHz
Modulations
AM   FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
1.8 W

Connections

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
500 mA max
TX
-

Physical

Manufactured
Between 1997 and 199x
Dimensions (w×h×d)
265 × 90 × 188 mm (10.43 × 3.54 × 7.40 in)
Weight
1.73 kg (3.8 lbs)
Form factor
Mobile

Other features

Memories
300 channels in 10 bank(s) @ 100 channels/second
Usage
Amateur / Ham radio operators
Features + options
Turbo-search (300 chn/sec)
PC programmable
S-meter
CTCSS,
Rotary control
Auto-store
Weather alert
Auto-sort,
Backlight
Tape record control
Data skip
Duplicate frequency alert
20 search-skip frequencies
Accessories
?
MPN
UNIDEN-BEARCAT-BC000895XLT

Manuals, diagrams and brochures

Uniden BC895 Programming Control Codes (v. 1.08) submitted by RigReference
Uniden BC895XLT Programming Control Codes (v. 1.08) submitted by RigReference
