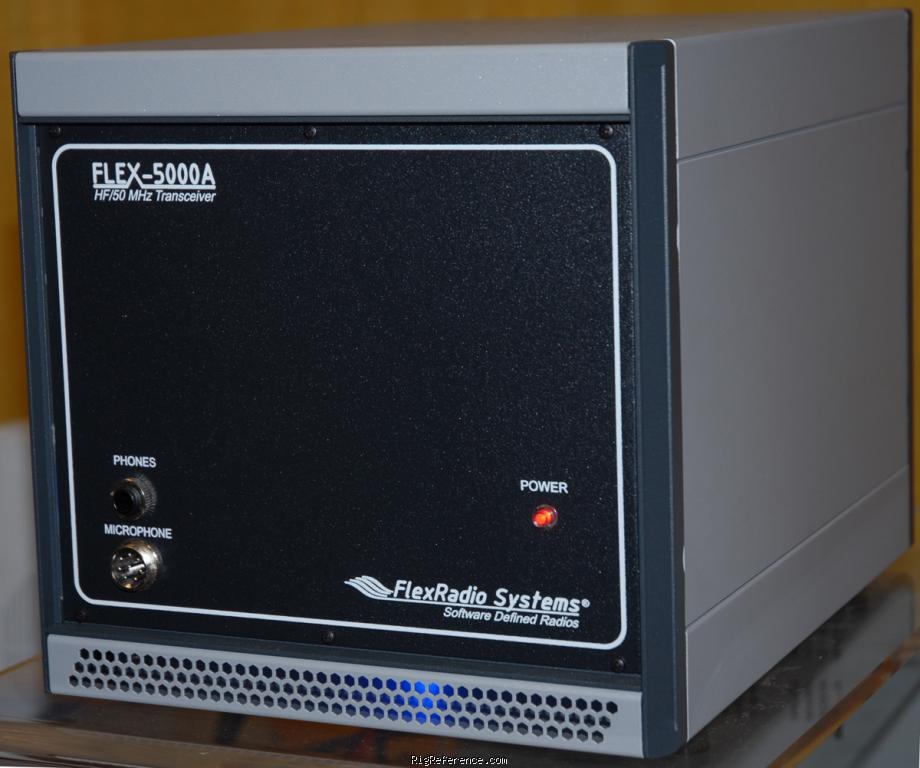

FlexRadio FLEX-5000A

Headless HF/VHF Transceiver

View all reviews (3) Add a review Add to my shack



Login or Register to upload images

FlexRadio Systems introduces the FLEX-5000™ family of ultra high performance Software Defined Radio transceivers. The FLEX-5000A integrates all I/Q data and hardware control over a single FireWire® (IEEE-1394) connection to a user provided computer. Sound cards and multiple cables are no longer necessary. Convenience and ease of setup are built right in!

The "workhorse" of the family is the FLEX-5000A . The same receiver and transmitter are common throughout the entire FLEX-5000 family, so no matter if you have the FLEX-5000A or the fully integrated FLEX-5000C™, you still have the same outstanding performance and capabilities.

The supplied open source software, PowerSDR, creates a powerful and flexible solution. The number of memories is limited only by the PC hard disk space.

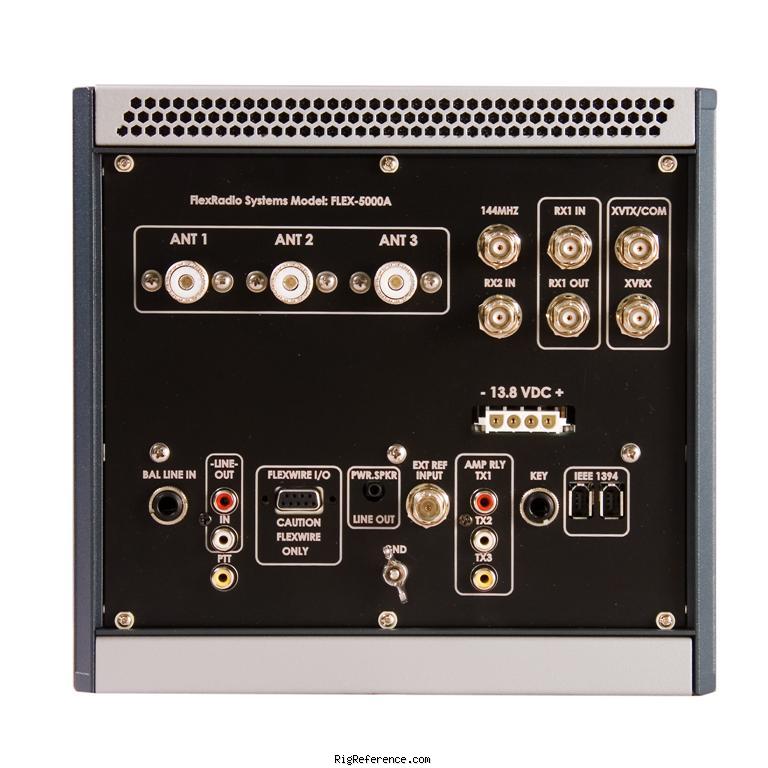

The FLEX-5000 connects to the PC via FireWire.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m
Frequency stability
±0.5 ppm 32 °F to 122 °F (0 °C to +50 °C)
Tuning steps
0.001-10.000 MHz kHz

Receiver

RX-range
0.01-60 MHz
Modulations
AM   N-FM   CW   USB   LSB   DSB   RTTY
Sensitivity
Preamp off: 1.3 µV @ 14MHz
Preamp on: 0.3 µV @ 14MHz
(-123/-133 dBm in 500 Hz)
Selectivity
CW 500 Hz –6/-60 dB: 500/640 (–6/–60 dB)
SSB 2.4 kHz –6/-60 dB: 2.39/2.54 (–6/–60 dB)
AM 6.6 kHz –6/-60 dB: 6.60/6.74 (–6/–60 dB)
Filters
Software controlled
Receiver system
SDR, Direct conversion, low IF
IF-frequencies
Software selectable from DC to 20 KHz
Image rejection
70 dB or better (160 - 6m Amateur bands)
Audio output
Stereo line-out, accepts PC type speakers

Transmitter

TX-range
160-6m
Modulations
AM   N-FM   CW   USB   LSB   DSB   RTTY
RF-Output
CW/SSB: 1-100 W PEP, AM: 2-25W

Connections

Antenna
BNC + SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC ± 10%
Current drain RX
1.5A
TX
25A max

Physical

Manufactured
Between 2007 and 20xx in USA
Dimensions (w×h×d)
236 × 221 × 315 mm (9.29 × 8.70 × 12.40 in)
Weight
5.90 kg (13.0 lbs)
Form factor
Headless

Other features

Memories
100000 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
SDR (Software Defined Radio)
Accessories
?
MPN
FLEXRADIO-FLEX-005000A

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the FlexRadio FLEX-5000A user manuals on eBay

Reviews & stories

Excellent Rig

FlexRadio FLEX-5000A, Headless HF/VHF Transceiver

Most flexible and easiest operating rig I have ever had. Also have the ATU, second receiver and VHF/UHF unit.

Great Value

Written by W0DHB on Dec 3, 2010

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Good condition in 2008
USD 2400.00

Best rig i ever owned

FlexRadio FLEX-5000A, Headless HF/VHF Transceiver

After using it for 3 years i only can say "Best rig i ever owned"
Nothing to complain about, and with the latest updates from KE9NS it can beat any transceiver

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Good condition in 2013
EUR 2200.00

My true love

FlexRadio FLEX-5000A, Headless HF/VHF Transceiver

In my opinion the Flex-5000 with the continuing support of KE9NS is about the pinnacle of SDR for 80 to 90 percent of ham radio operators. With ATU and 2nd receiver plus the UHF/VHF modules it will do it all. There are so many options and use modes that I never get bored using this rig.

Operating perimeters are infinite. Follow https://www.youtube.com/watch?v=fV_iolSf3OA W1AEX's excellent video on setting up the audio train for each mode and this baby rocks.

Happy DX-ing

Written by k4xtt on Aug 5, 2018

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Mint condition in 2010

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used FlexRadio FLEX-5000A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the FlexRadio FLEX-5000A is around:

  • EUR 1581.00
  • USD 1442.00 ~ USD 649.00
Year Historic price Condition Submitted by
2019 USD 650.00 New / Mint zs6hda
2015 USD 1600.00 Used / Mint KK4IBG
2013 USD 1800.00 Used / Mint KK4IBG
2013 EUR 2200.00 New / Good gpsboard
2009 USD 4209.00 New / Mint NT7J
2008 USD 2400.00 New / Mint W0DHB
