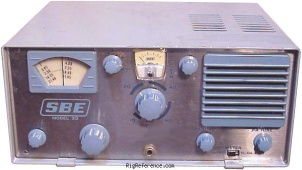

The SBE SB-33 is a SSB transceiver with 135 W PEP.

General characteristics

HAM bands
80m  40m  20m  15m
Frequency stability
?
Tuning steps
Continuous
Memories
None

Receiver

RX-range
80-15 m
Modulations
CW   USB   LSB
Sensitivity
≤ 1 µV for 10 dB signal to noise ratio
Selectivity
2.1 kHz @ -6 dB / 4.5 kHz @ -60 dB
Filters
?
Receiver system
Super-Heterodyne
IF-frequencies
?
Image rejection
?
Audio output
2 W at 10% THD (max 3 W)

Transmitter

TX-range
80-15 m
Modulations
CW   USB   LSB
RF-output
135 W PEP

Connections

Antenna
Clamps / screws
Impedance
40-100Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
35 W
TX
165 W

Physical

Dimensions (w×h×d)
298 × 140 × 260 mm (11.73 × 5.51 × 10.24 in)
Weight
6.80 kg (15.0 lbs)
Form factor
Base Station
Manufactured
Between 1963 and 196x in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4523
MPN
SBE-SB-000033

Manuals, diagrams and brochures

SBE SB-33 Operation And Service Manual PDF - 3.54 MB, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used SBE SB-33. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the SBE SB-33 is around:

  • USD 4.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
1963 USD 390.00 New / Mint RigReference
