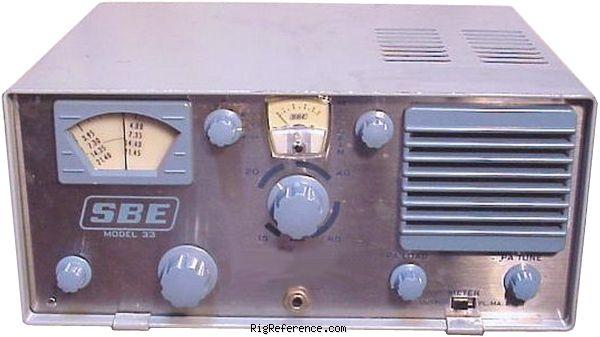

SBE SB-33

General characteristics

HAM bands

80m  40m  20m  15m

Frequency stability

?

Tuning steps

Continuous

Memories

None

Receiver

RX-range

80-15 m

Modulations

USB   LSB

Sensitivity

≤ 1 µV for 10 dB signal to noise ratio

Selectivity

2.1 kHz @ -6 dB / 4.5 kHz @ -60 dB

Filters

?

Receiver system

Super-Heterodyne

IF-frequencies

?

Image rejection

?

Audio output

2 W at 10% THD (max 3 W)

Transmitter

TX-range

80-15 m

Modulations

USB   LSB

RF-output

135 W PEP

Connections

Antenna

RCA (Tulip)

Impedance

40-100Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

35 W

TX

165 W

Physical

Dimensions (w×h×d)

298 × 140 × 260 mm (11.73 × 5.51 × 10.24 in)

Weight

6.80 kg (15.0 lbs)

Form factor

Base Station

Manufactured

Between 1963 and 196x in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4523

MPN

SBE-SB-000033

Manuals, diagrams and brochures

SBE SB-33 Operation And Service Manual PDF - 3.54 MB, submitted by RigReference



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used SBE SB-33. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the SBE SB-33 in Good condition is around:

• USD 293

Price History Chart

These estimates are based on the following prices:
