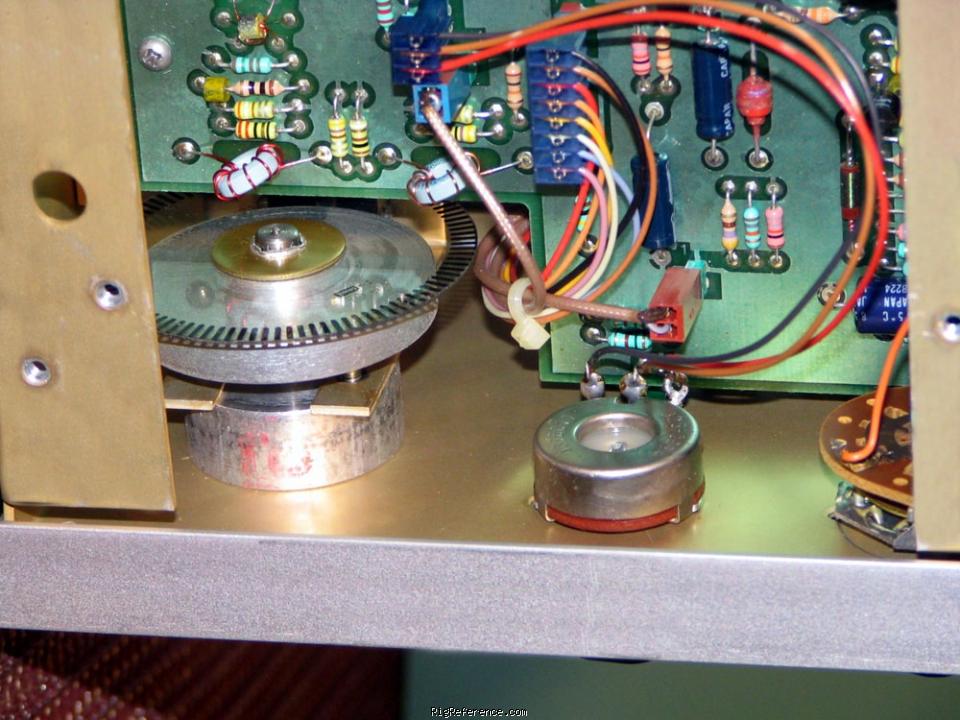

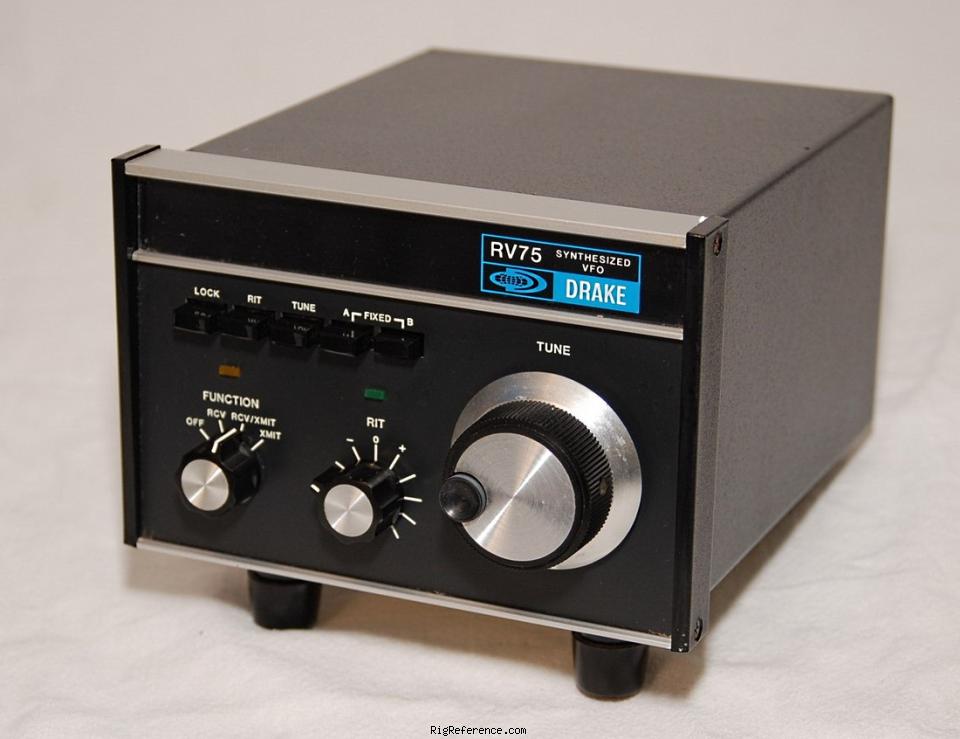

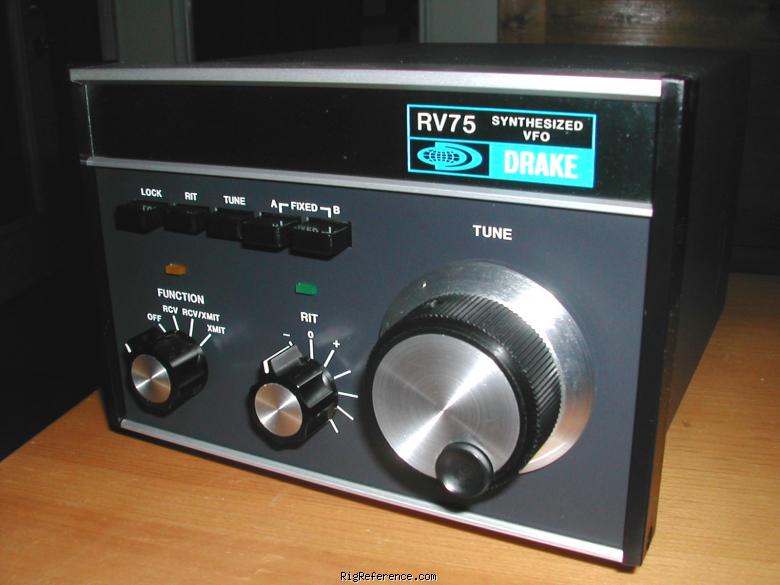

The Drake RV75 is a synthesized remote VFO designed for use with 5-Line and 7-Line transceivers and receivers including the R7. The RV-75 provides a high degree of frequency control flexibility with crystal controlled frequency stability. The RV-75 output frequency is synthesized in 10 Hz increments for smooth frequency control without jumps and the weighted flywheel of the optical shaft encoder provides a smooth solid feel.

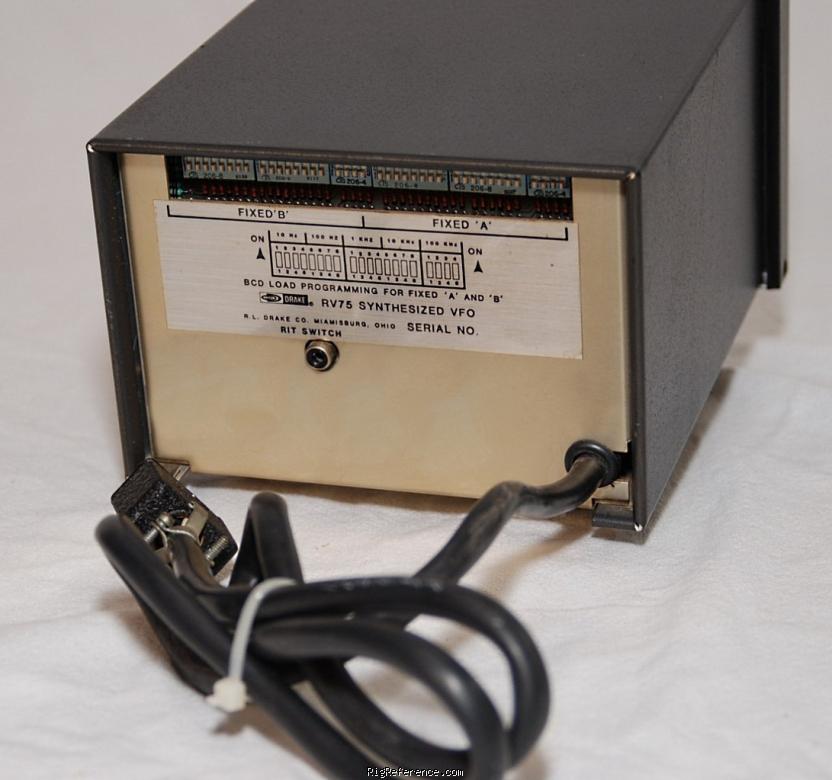

The RV-75 also provides for two fixed frequencies [A and B], in addition to the tuned frequency. The fixed frequencies are programmed by DIP switches accessable from the rear panel. The RIT function allows the receiver to be offset from the tranmsitter at ± 200 Hz.

General characteristics

HAM bands
?
Frequency stability
±15 ppm from +5 to +55 deg. C
Tuning steps
?

Frequency range

Range
-

Connections

Antenna
-
Impedance
?
Other
-

Electrical

Power requirements
11-16V DC
Current drain RX
-
TX
?

Physical

Manufactured
Between and
Dimensions (w×h×d)
173 × 115 × 330 mm (6.81 × 4.53 × 12.99 in) excl. feed and knobs
Weight
1.63 kg (3.6 lbs)
Form factor
Base Station

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
DRAKE-RV000075
