Uniden-Bearcat UBC100XLT Handheld VHF/UHF Scanner / receiver

 (3.9/5)  Add a story   View all stories (2)   Add to my shack

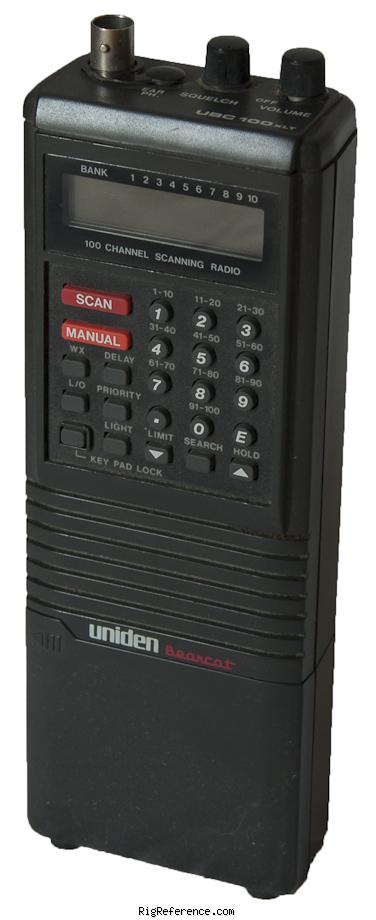

The Uniden Bearcat UBC100XLT covers 66-512MHz in 9 bands and receives both AM and FM. It features an illuminated LCD display, key pad lock, Wx reception, priority, limit search and delay. Frequencies can be entered directly through the numeric keypad.

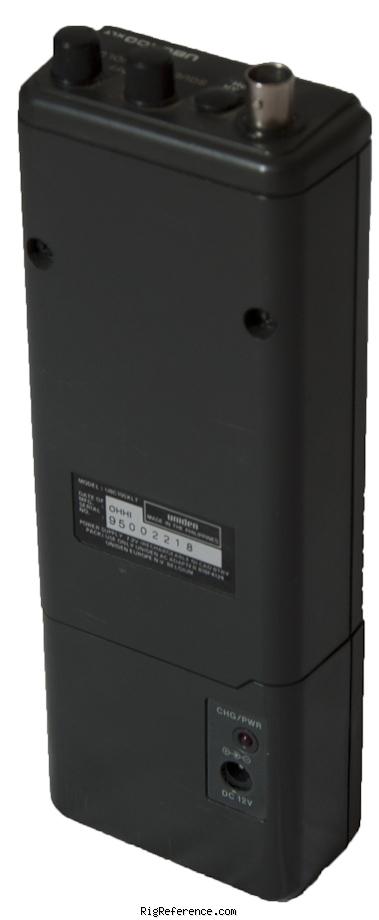

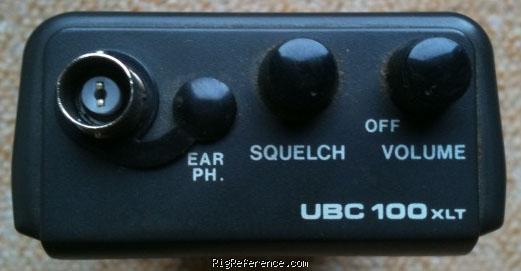

A flexible antenne with BNC connector is included with the UBC100XLT. Other connectors are for an earphone and external DC power source.
The scanner is powered by a 7.2V NiCd battery pack, which consists of 6 AA-type batteries and a voltage regulator.

Frequency range

RX-range
66-88 / 118-174 / 406-512 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM
Sensitivity
66-88MHz: 0.3µV
118-136MHz: 0.6µV
136-174MHz: 0.4µV
406-512MHz: 0.3µV
Selectivity
-55dB @ ±25kHz
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
500mW max

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
12V DC or NiCd battery (7.2V)
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
68 × 200 × 34 mm (2.68 × 7.87 × 1.34 in) including protrusions
Weight
390 gr (13.8 oz)
Form factor
Handheld
Manufactured
Between 1988 and 19xx in Philippines
MPN

Other features

Memories
100 channels in 10 bank(s) @ 15 channels/second
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other Uniden-Bearcat documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Uniden-Bearcat UBC100XLT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Uniden-Bearcat UBC100XLT might be around:

  • EUR 0.00
Price Condition Year User
EUR 2.00 Good / Used 2009 elmer

To submit a price, please login or register an account.

Stories & reviews

Vintage but usable

Uniden-Bearcat UBC100XLT, Handheld VHF/UHF Scanner / receiver

Being a scanner from the 1980's, the word 'vintage' definitely does apply. I bought my UBC100XLT at a flee market for 2 euros. The owner couldn't tell me if it was working or not, but for 2 euros I'm not going to be picky. Well, it is still working okay, except for the batteries. The NiCd cells (AA) are leaking and beyond repair. Guess for the time being I'll just have to use the UBC100 connected to a wall socket. Sensitivity is quite good, considering the age of the rig. Also, 100 memory channels is very nice. For a handheld receiver, it is large. Quite a bit larger than more recent receivers. But I do like the solid feel when handling it. The volume and squelch knobs are a bit on the small side though. I took a look at the inside of the receiver. It looks like it just came out of the factory. I'm pretty sure I'm the first person to ever open this example. If you plan to add a discriminator output to the UBC100, that's not a problem. The IF stage is easy accessible. Only thing is you have to connect your output to a SMD chip, to it will take a steady hand on the soldering iron. All in all, not bad for 2 euros!

Written by elmer on Sep 16, 2009

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2009
EUR 2.00

Still Going !

Uniden-Bearcat UBC100XLT, Handheld VHF/UHF Scanner / receiver

I can't remember when I got mine, but it was new, and a long time ago! . Had a lot of use at the time and apart from dodgy connection between battery pack and body has fired up fine. If battery is allowed to get too low, memory seems to remain but all channels go to L/O (locked out). Tell Elmer its an easy job to open up the battery pack and replace the cells. With todays high capacity recharbles he will be surprised how long it will run. Only gripe thats not the gears fault, the only online manuals are all the same lousy scan, only just readable. You need a manual as a little clunky on the programming.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2000
