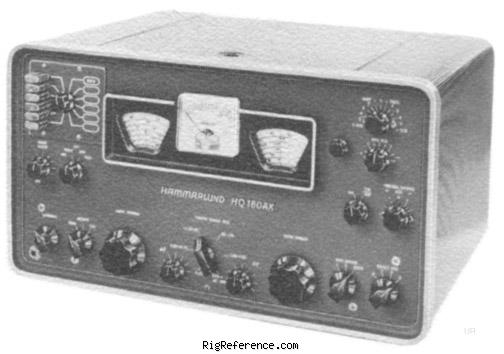

Same as Hammarlund HQ-180A, but the Hammarlund HQ-180AX features a crystal selection switch in the panel area formerly occupied by the clock-timer. This switch can select up to six crystals on the front panel and up to five installed inside the radio.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.54-30 MHz
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
SO-239 + Clamps / screws
Impedance
50 Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
120W
TX
-

Physical

Dimensions (w×h×d)
483 × 267 × 330 mm (19.02 × 10.51 × 12.99 in)
Weight
17.25 kg (38.1 lbs)
Form factor
Base Station
Manufactured
Between 1963 and 1972 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4557
MPN
HAMMARLUND-HQ-000180AX
