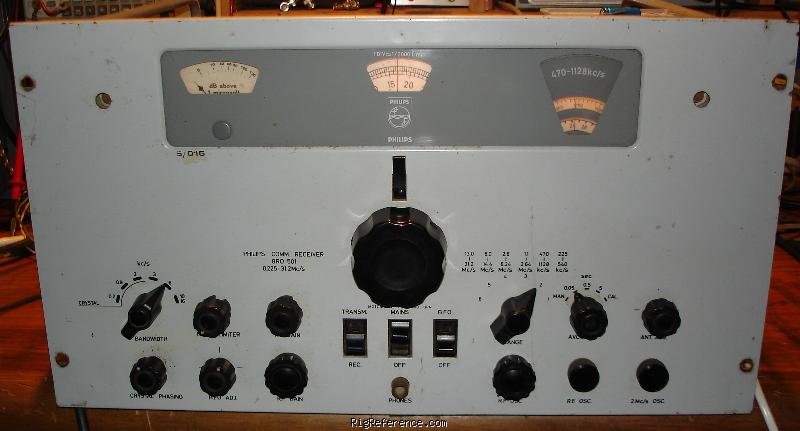

The Philips 8 RO 501 is a large HF receiver. The 8 RO has a motorized tuning system with manual fine-tuning.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
18 channels in 1 bank(s)

Receiver

RX-range
0.225-31.2 MHz in 6 bands
Modulations
AM   W-FM mono
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Single / double conversion
IF-frequencies
1st: 2455 kHz
2nd: 455 kHz
Image rejection
?
Audio output
2.5 W, external speaker required

Connections

Antenna
N-type
Impedance
75Ω
Other
-

Electrical

Power requirements
3V DC (2R03/AAA) or 3V DC external
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 1963 and 1968 in Netherlands

Other features

Usage
Commercial / Land mobile communication
Features + options
-
Accessories
-
RigReference ID
5226
MPN
PHILIPS-000008-RO-501
