JRC NSD-515S

Desktop HF/VHF Transmitter

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find JRC NSD-515S rigs and spare parts on eBay

Find the JRC NSD-515S on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

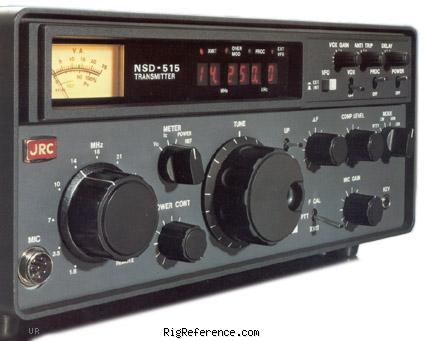

The Japan Radio Company NSD-515 is a digitally synthesized HF amateur transmitter covering 160 through 10 meters with 100 watts (50W on 10 meters). Digital tuning is in 100 Hz steps. This radio employs modular design with plug-in boards.

This radio was produced in two versions:
- JRC NSD-515D (100 watts)
- JRC NSD-515S (10 watts)

The NSD-515 is designed to match the JRC NRD-515 receiver.

General characteristics

HAM bands: 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
Frequency stability: ± 50Hz per hour after 1 hour.
Tuning steps: ?
Memories: ?

Transmitter

TX-range: 160-10m + WARC
Modulations: -
RF-output: 10W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: -
TX: 6A max

Physical

Dimensions (w×h×d): 340 × 140 × 300 mm (13.39 × 5.51 × 11.81 in)
Weight: 11.50 kg (25.4 lbs)
Form factor: Base Station
Manufactured: Between 1979 and 1986 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4570
MPN: JRC-NSD-000515S
