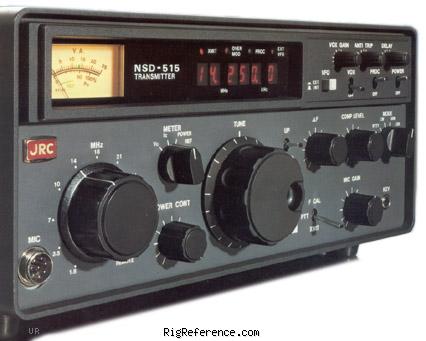

The Japan Radio Company NSD-515 is a digitally synthesized HF amateur transmitter covering 160 through 10 meters with 100 watts (50W on 10 meters). Digital tuning is in 100 Hz steps. This radio employs modular design with plug-in boards.

This radio was produced in two versions:
- JRC NSD-515D (100 watts)
- JRC NSD-515S (10 watts)

The NSD-515 is designed to match the JRC NRD-515 receiver.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m
Frequency stability
± 50 Hz per hour after 1 hour.
Tuning steps
100 Hz
Memories
None

Transmitter

TX-range
160-10m + WARC
Modulations
AM   CW   USB   LSB   RTTY
RF-output
100W (50W on 10m)

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
20A max

Physical

Dimensions (w×h×d)
340 × 140 × 300 mm (13.39 × 5.51 × 11.81 in)
Weight
11.50 kg (25.4 lbs)
Form factor
Base Station
Manufactured
Between 1979 and 1986 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4571
MPN
JRC-NSD-000515D
