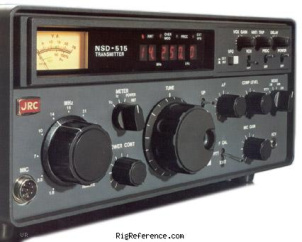

JRC NSD-515D Desktop HF/VHF Transmitter

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



The Japan Radio Company NSD-515 is a digitally synthesized HF amateur transmitter covering 160 through 10 meters with 100 watts (50W on 10 meters). Digital tuning is in 100 Hz steps. This radio employs modular design with plug-in boards.

This radio was produced in two versions:
- JRC NSD-515D (100 watts)
- JRC NSD-515S (10 watts)

The NSD-515 is designed to match the JRC NRD-515 receiver.

Frequency range

RX-range
-
TX-range
160-10m + WARC
HAM bands
-
Stability
± 50Hz per hour after 1 hour.
Tuning steps
-
Filters
-

Receiver

Modulations
AM   CW   USB   LSB   RTTY
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
100W (50W on 10m)

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
20A max

Physical

Dimensions (w×h×d)
340 × 140 × 300 mm (13.39 × 5.51 × 11.81 in)
Weight
11.50 kg (25.4 lbs)
Form factor
Base Station
Manufactured
Between 1979 and 1986 in Japan
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
