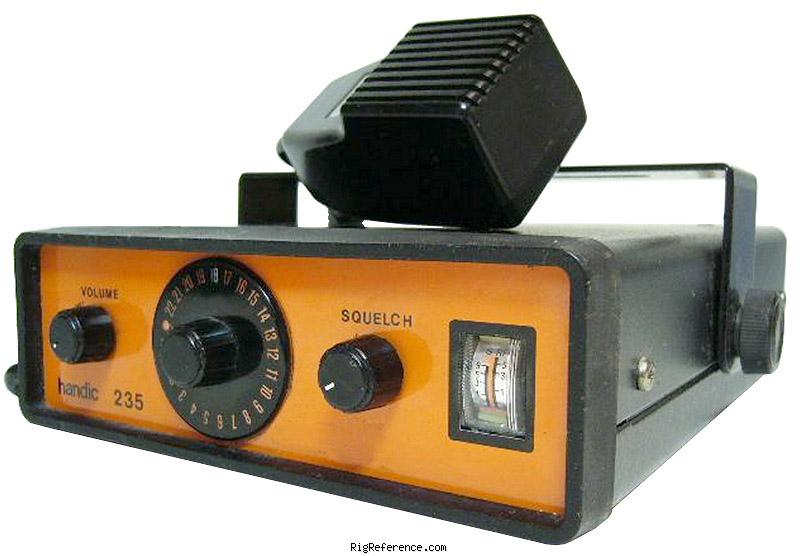

The Handic 235 is a mobile transceiver. The frequency range for both reception and transmission is 26.965-27.255 MHz. It has a RF output of 3.5 W and features 1 memory bank with 23 channels. Dimensions are 50 × 152 × 192 mm.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 23 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.255 MHz
- Modulations
- AM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 26.965-27.255 MHz
- Modulations
- AM
- RF-output
- 3.5 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 152 × 50 × 192 mm (5.98 × 1.97 × 7.56 in)
- Weight
- 1.42 kg (3.1 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1974 and 197x
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4772
- MPN
- HANDIC-000235
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Handic 235. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Handic 235 is around:
- USD 132 ~ USD 246
This estimate is based on similar equipment and may not reflect the exact value of this model.
