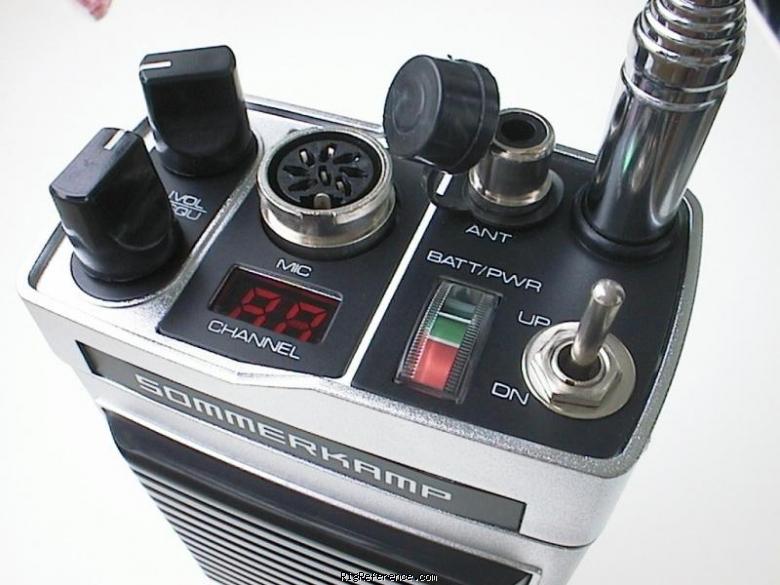

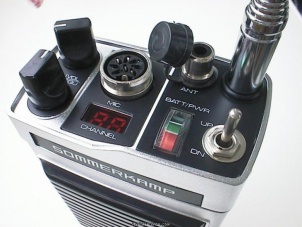

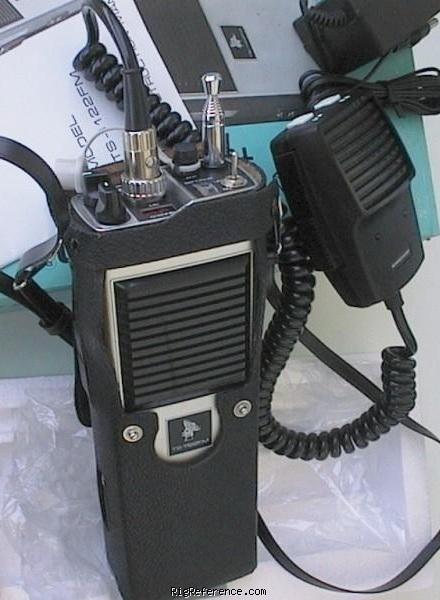

Sommerkamp TS-1122FM

Handheld Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Sommerkamp TS-1122FM is a handheld transceiver. The frequency range for both transmit and receive is 26.965-27.225 MHz with a frequency stability of ± 3 p.p.m. at 25°C and ± 8 p.p.m. at -10°C to +50°C. The tuning steps are 10 kHz. The RF output is 0.5 W and the audio output is 250 mW @ 8 ohm, 10% THD. It features 1 memory bank with 22 channels. Power requirements are 12V DC. Dimensions are 230 × 78 × 43.5 mm.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ± 3 p.p.m. at 25°C ± 8 p.p.m. at -10°C to +50°C
Tuning steps: 10 kHz
Memories: 22 channels in 1 bank(s)

Receiver

RX-range: 26.965-27.225 MHz
Modulations: FM
Sensitivity: 1 µV (20dB SINAD)
Selectivity: ±3 kHz (-6 dB)
±7.5 kHz (-70 dB)
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: ?
Image rejection: ?
Audio output: 250 mW @ 8 ohm, 10% THD

Transmitter

TX-range: 26.965-27.225 MHz
Modulations: FM
RF-output: 0.5 W

Connections

Antenna: RCA (Tulip) + Built-in telescopic
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 78 × 230 × 43.5 mm (3.07 × 9.06 × 1.71 in)
Weight: ?
Form factor: Handheld
Manufactured: Between 19xx and 19xx

Other features

Usage: Citizen Band (27Mc)
Features + options: -
Accessories: -
RigReference ID: 5011
MPN: SOMMERKAMP-TS-001122FM
