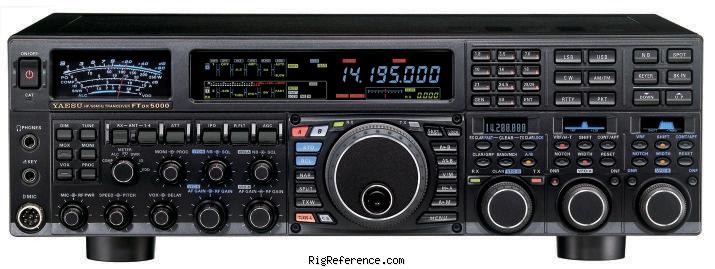

The Yaesu FTdx5000 was announced in November 2009. The transceiver features an impressive 112 dB dynamic range and an IP3 (3rd Order Intercept Point) of +40 dBm (CW, 500 Hz). Newly designed roofing filters are selectable between 300 Hz, 600 Hz, 3 kHz, 6 kHz and 15 kHz. DSP features are powered by two 32-bit processors from Texas Instruments (TMS320C6727B) both running at 300 MHz. Each VFO has its own DSP processor. RF output comes from a pair of VRF150 FETS yielding 200 W.
Besides the main display there is a large multi-functional analogue meter (same as in the FTdx-9000) and three sub-displays to indicate sub-frequency, graphical wave and menu functions.

The Station Monitor SM-5000 is optional with the FTdx5000.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m
Frequency stability
±0.5 p.p.m. TCXO
Tuning steps


0.03-60 MHz
AM   FM   CW   USB   LSB   RTTY
15 / 6 / 3 kHz, 600 Hz (300 Hz optional)
Receiver system
Triple conversion Super-heterodyne + DSP
1st: Main: 9 MHz, Sub: 40.455 MHz
2nd: Main: 30 kHz (SSB/CW), 24 kHz (FM/AM), Sub: 455 kHz
3rd: Main: 30 kHz (SSB/CW), 24 kHz (FM/AM)
Image rejection
Audio output


10-160 m + WARC / 50-54 MHz
AM   FM   CW   USB   LSB   RTTY
200 W


50 Ω


Power requirements
Current drain RX


Between 2009 and 201x in Japan
Dimensions (w×h×d)
462 × 135 × 389 mm (18.19 × 5.31 × 15.31 in) (w/o knobs)
21.00 kg (46.3 lbs)
Form factor
Base Station

Other features

Amateur / Ham radio operators
Features + options
RS-232 computer interface (no USB!)

Manuals, diagrams and brochures

Yaesu FTdx5000 Operation manual - part 1 submitted by RigReference
Yaesu FTdx5000 Operation manual - part 2 submitted by RigReference
Upload relevant documents

Reviews & stories

Fantastic Transceiver

Yaesu FTdx5000, Desktop HF/VHF Transceiver

In my 50+ years of ham radio experience, this rig is the best. The experience gets better and better as I learn to use the rig. The stereo split ability for dxing is really great. On cw I can narrow the DSP filter to 100Hz with minimal impact on the fidelity of the signal. The DSP noise reduction really works well. The rig the FTdx5000 replaced, IC-7600, isn't even close in performance. For comparison, here is a list of "modern" rigs I have owned and used regularly: ICOM IC-7600, IC-756 Pro, Icom-765, TenTec Omni V!+, TS-830S. Nearly everything that needs a knob, has a knob for easy access without cycling through a menu system. But when needed, the menu system is easy to use and Instruction Manual is clear and easy to follow. With 200 W output, my amplifier is gathering dust.

A couple nit picks: 1.No clock, 2.MS-5000 scope not very useful (really inadequate after using Icom band scopes). 3.Narrower SSB roofing filter (maybe 2.4 KHz) would be better. 4.The engagement of split mode and return to normal function is much more complex than necessary. In this respect, my Icom rigs were far superior.

No rig is perfect, and we all have our personal preferences, but in my experience, this is the best transceiver, even with the nits above.

Written by w3na on Nov 24, 2013

Build quality
User friendliness
Value for money
Mint condition in 2013
USD 4500.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTdx5000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FTdx5000 is around:

  • EUR 3695.00
  • USD 2192.00 ~ USD 3235.00

These estimates are based on the following prices: (see all 3 prices)

Year Historic price Condition Submitted by
2014 EUR 4500.00 New / Mint PA1EC
2013 USD 4500.00 Used / Mint w3na
2010 USD 5499.95 New / Mint universal-radio
