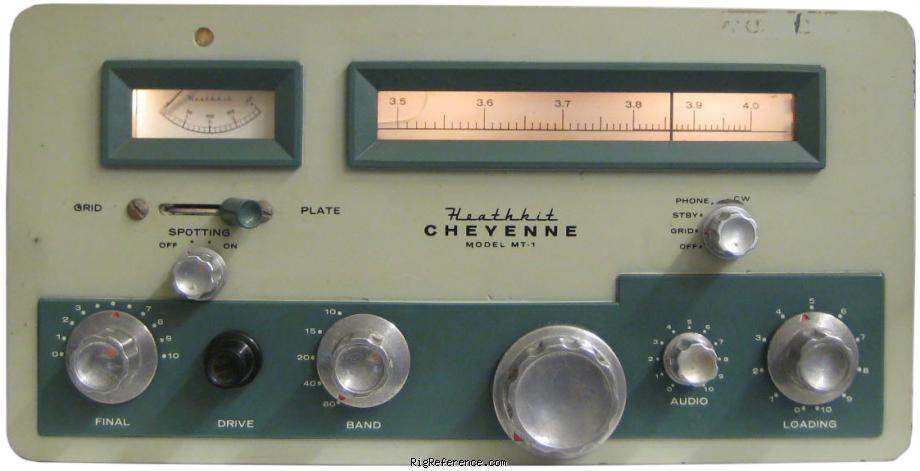

The Heathkit MT-1 'Cheyenne' transmitter matches the Heathkit MR-1 'Comanche' receiver.
It features a built-in VFO, controlled carrier modulator, four RF stages, 6146 final amplifier, and pi-network (coaxial) output coupling. A spotting switch is provided to allow tuning the transmitter "off-the-air" and a specially designed ceramic element microphone with push-to-talk switch assures properly shaped audio response for effective modulation with plenty of "punch." All power necessary for mobile operation is furnished by the Heathkit HP-10 mobile power supply. Simple conversion to fixed station operation is easily accomplished by using the Heathkit HP-20 AC power supply. Styling of both the "Comanche" and "Cheyenne" features a one-piece die-cast front panel with raised meter, tuning dial and control panel escutcheons, and die-cast knobs. Color styled in two-tone gray and gray-green.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 80 / 40 / 20 / 15 / 10 m
- Modulations
- CW
- RF-output
- 90 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- External PSU (500-600V DC @ 100 mA; 6.3 V @ 4.7 A or 12.6 V @ 2.35 A AC/DC)
- Current drain RX
- -
- TX
- ?
Physical
- Dimensions (w×h×d)
- 308 × 155 × 254 mm (12.13 × 6.10 × 10.00 in)
- Weight
- 7.00 kg (15.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 195x and 196x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5051
- MPN
- HEATHKIT-MT-000001-'CHEYENNE'
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit MT-1 'Cheyenne'. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Heathkit MT-1 'Cheyenne' is around:
- USD 14.00
These estimates are based on the following prices:
