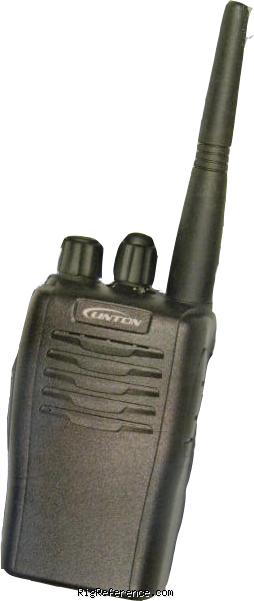

The Linton LT-3268 is a fully synthesized handheld radio transceiver featuring 16 channels, Voice Compander technology for clear audio, 50 CTCSS (PL) tones. If you travel around the world, then this radio will cover Euro PMR446, USA/Canada FRS, UK general 449MHz, etc.
The simple controls and rugged design of this radio would make it ideal for the following applications: construction, shop-watch, neighbourhood-watch or any other application that has to withstand rough use and is simple to operate.

All of the Functions on this radio are PC programmable (programming lead required). These radios also have the 6.25 KHz steps so you will be right on frequency for PMR 446.

General characteristics

HAM bands
70cm
Frequency stability
±2.5ppm
Tuning steps
5 / 6.25 / 12.5 / 25 kHz
Memories
16 channels in 1 bank(s)

Receiver

RX-range
440-470 MHz
Modulations
FM
Sensitivity
<0.20 µV
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
400mW

Transmitter

TX-range
440-470 MHz
Modulations
-
RF-output
4 W

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.4V DC Ni-MH
Current drain RX
35 mA (standby)
TX
1500 mA

Physical

Dimensions (w×h×d)
55.5 × 100 × 31 mm (2.19 × 3.94 × 1.22 in)
Weight
225 gr (7.9 oz)
Form factor
Handheld
Manufactured
Between 200x and 201x in China

Other features

Usage
Amateur / Ham radio operators
Features + options
Repeater Shift
CTCSS
KENWOOD option ready
PC programmable via interface cable
Accessories
-
RigReference ID
5094
MPN
LINTON-LT-003268
