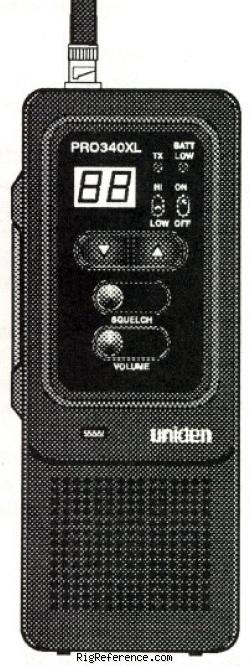

Uniden-Bearcat PRO340XL

Handheld Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

3 weather channels

Frequency range

RX-range
26.965-27.405 MHz
TX-range
26.965-27.405 MHz
HAM bands
11m (CB)
Stability
± 0.005%
Tuning steps
?
Filters
?

Receiver

Modulations
AM
Sensitivity
0.7 mV for 10 dB; (S+N)/N typical
Selectivity
6 dB @ 7 kHz, 70 dB @ 10 kHz typical
Receiver system
Double Conversion Superheterodyne
IF-frequencies
1st: 10.695 MHz
2nd: 455 kHz
Image rejection
75 dB
Audio output
0.5 W

Transmitter

Modulations
-
RF-Output
1 or 4 W

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
12.0 VDC nominal (negative ground)
Current drain RX
0.5 A
TX
1.4 A

Physical

Dimensions (w×h×d)
67 × 140 × 389 mm (2.64 × 5.51 × 15.31 in)
Weight
595 gr (1.3 lbs)
Form factor
Handheld
Manufactured
Between 20xx and 20xx
MPN
UNIDEN-BEARCAT-PRO000340XL

Other features

Memories
40 channels in 1 bank(s)
Usage
Citizen Band (27Mc)
Features + options
?
Accessories
?
