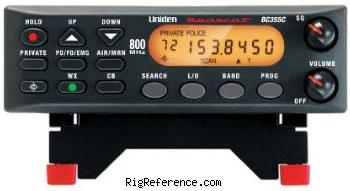

Uniden-Bearcat BC355C

General characteristics

HAM bands

6m

Frequency stability

?

Tuning steps

5 / 12.5 kHz

Memories

300 channels in bank(s) @ 50 channels/second

Receiver

RX-range

25-54 / 108-174 / 406-512 / 806-956 MHz

Modulations

AM   FM   W-FM

Sensitivity

25-28: 0.4 μV
28-54: 0.2 μV
108-137: 0.4 μV
137-174: 0.2 μV
406-512:0.3 μV
806-956: 0.4 μV
(12 dB SINAD)

Close-call
25-54: 450 μV
137-174: 150 μV
406-512: 130 μV
108-137: 200 μV
806-956: 450 μV

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1.2 W

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

132 × 41 × 146 mm (5.20 × 1.61 × 5.75 in)

Weight

?

Form factor

Mobile

Manufactured

Between 200x and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

Close-call
Backlit Display
~3600 Pre-programmed channels

Accessories

-

RigReference ID

5102

MPN

UNIDEN-BEARCAT-BC000355C

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BC355C. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Uniden-Bearcat BC355C in Good condition is around:

• EUR 83 ~ EUR 89

Price History Chart

These estimates are based on the following prices:
