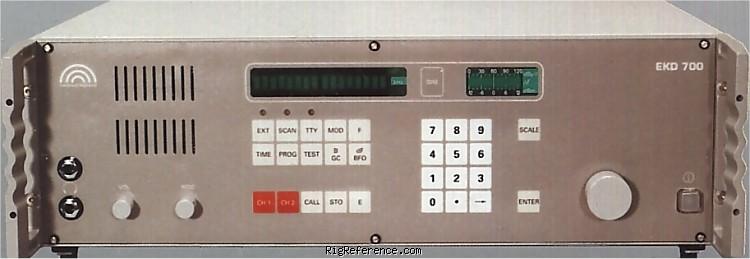

The EKD-700 was only produced in a preliminary series of ten sets and a few prototypes by the Berlin based Funkwerk Köpenik (part of RFT).
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 0.01 kHz
- Memories
- 500 channels in 1 bank(s)
Receiver
- RX-range
- 10 kHz - 30 MHz
- Modulations
- AM AM-sync FM CW USB LSB ISB FSK FAX
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ±150 / ±1500 / ±3500 Hz
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 70.2 MHz (?)
2nd: 200 kHz (?) - Image rejection
- ?
- Audio output
- 500 mW
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains (127 or 220V AC) or 24V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 540 × 133 × mm (21.26 × 5.24 × 0.00 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 198x and 199x in East Germany
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5108
- MPN
- RFT-EKD-000700
Manuals, diagrams and brochures
-
No documents available for this particular model.
