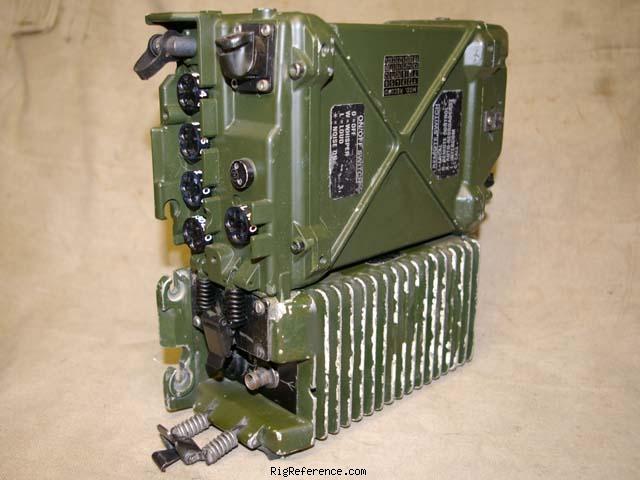

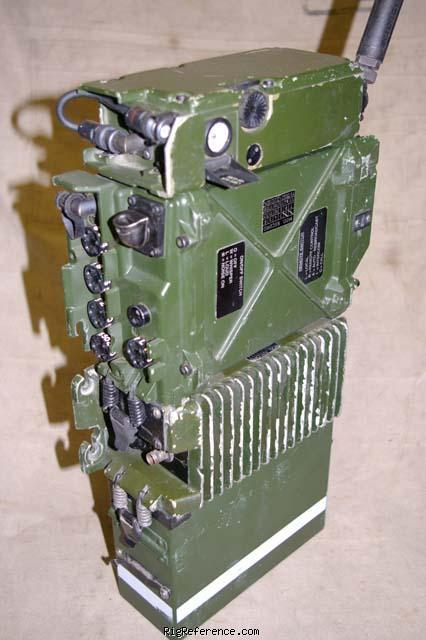

The Clansman PRC-352 Back-Pack Radio was mainly used by the Royal Marines. The radio is basically a Clansman PRC-351 with the addition of a 20 Watt Amplifier.

General characteristics

HAM bands
6m
Frequency stability
5 ppm per year
Tuning steps
25 kHz
Memories
?

Receiver

RX-range
30-76 MHz
Modulations
N-FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
11.525 MHz
Image rejection
?
Audio output
?

Transmitter

TX-range
30-76 MHz
Modulations
N-FM
RF-output
20 W

Connections

Antenna
Proprietary (military)
Impedance
50Ω
Other
-

Electrical

Power requirements
24V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Portable
Manufactured
Between 19xx and 19xx in RACAL BCC Ltd. in England

Other features

Usage
Military communication
Features + options
Range: 10 km when used with 1.2 meter standard whip antenna in open country side, and up to 20 km when used with a vehicle antenna.
Accessories
-
RigReference ID
5114
MPN
CLANSMAN-PRC-000352
