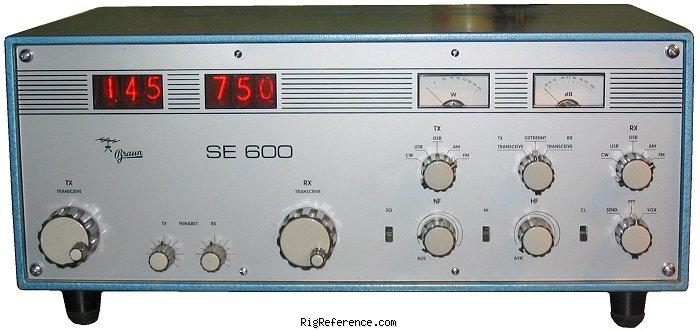

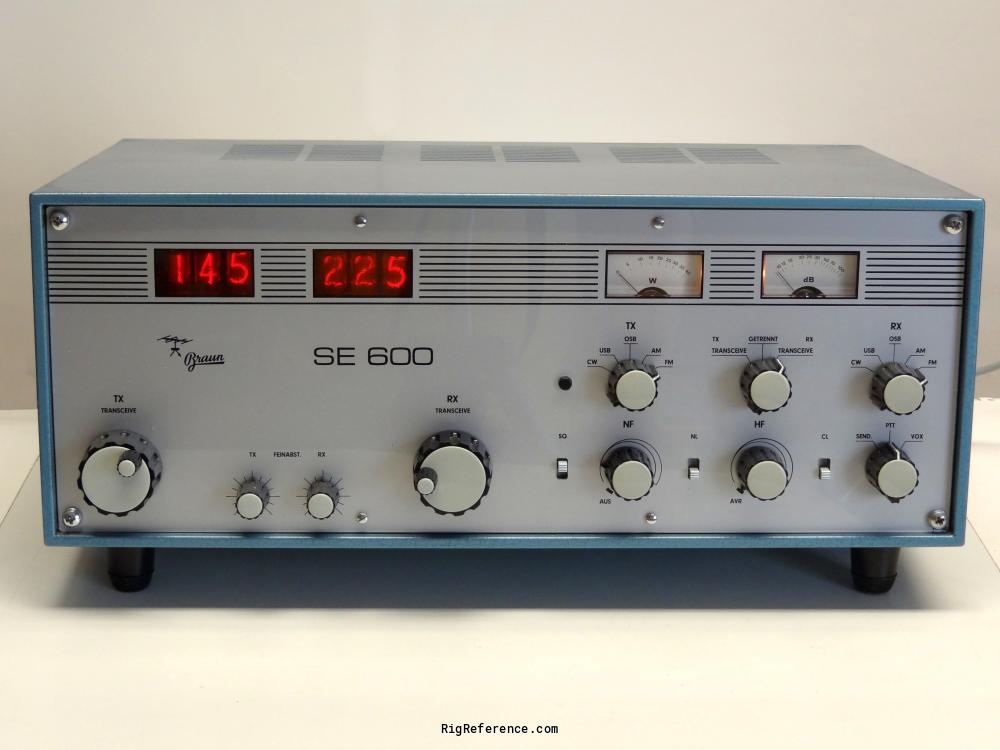

Digital version of the Braun SE-600. Uses Nixie-tube displays for frequency readout.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
Continuous
Memories
None

Receiver

RX-range
144-146 MHz
Modulations
AM   FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-146 MHz
Modulations
AM   FM   CW   SSB
RF-output
12 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC or mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
420 × 260 × 160 mm (16.54 × 10.24 × 6.30 in)
Weight
12.00 kg (26.5 lbs)
Form factor
Base Station
Manufactured
Between 1973 and 197x in West Germany

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5155
MPN
BRAUN-SE-000600-DIG

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Braun SE-600 dig. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Braun SE-600 dig in Good condition is around:

  • EUR 1,500

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
1990 EUR 1500.00 Used / Good pd0nmf
