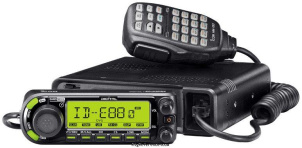

ICOM ID-E880 Mobile VHF/UHF Transceiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

European version of the ICOM ID-880H and mobile companion of the ICOM IC-E80D.

Frequency range

RX-range
118-174 / 230-550 / 810-1000 MHz
TX-range
144-146 / 430-440 MHz
HAM bands
2m  70cm
Stability
2.5 p.p.m. (10 °C to +60 °C)
Tuning steps
5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 200 kHz
Filters
-

Receiver

Modulations
AM   FM   N-FM   DV
Sensitivity
FM (at 12dB SINAD)
118.000–136.995MHz 0.16μV
137.000–173.995MHz 0.16μV
230.000–259.995MHz 0.56μV
260.000–299.995MHz 0.32μV
300.000–349.995MHz 0.22μV
350.000–399.995MHz 0.22μV
400.000–499.995MHz 0.16μV
500.000–549.995MHz 0.16μV
810.000–879.990MHz 0.45μV
880.000–999.990MHz 0.45μV

AM (at 10dB S/N, 30% Mod.)
118.000–136.995MHz 0.5μV
137.000–173.995MHz 0.5μV
230.000–259.995MHz 1.8μV
260.000–299.995MHz 1.0μV
300.000–349.995MHz 0.79μV
350.000–399.995MHz 0.63μV
400.000–499.995MHz 0.56μV
500.000–549.995MHz 0.56μV

DV (D-Star) (at BER 1%, 4.8kbps)
VHF (Ham band) Less than 0.35μV
UHF (Ham band) Less than 0.35μV
Selectivity
Wide: > 10 kHz/6 dB, < 30 kHz/60 dB
Narrow: > 6 kHz/6 dB, < 20 kHz/60 dB
DV: > 50 dB
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 46.35 MHz
2nd: 450 kHz
Image rejection
60 dB
Audio output
More than 2.0 W at 10% distortion with an 8 ?

Transmitter

Modulations
FM   N-FM   DV
RF-Output
50 / 15 / 5 W (approx.)

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC ±15%
Current drain RX
1.2 A max
TX
12.5 A max

Physical

Dimensions (w×h×d)
150 × 40 × 200 mm (5.91 × 1.57 × 7.87 in)
Weight
1.30 kg (2.9 lbs) without microphone, cable and bracket
Form factor
Mobile
Manufactured
Between 2009 and 20xx in Japan
MPN
ICOM-ID-E000880

Other features

Memories
1052 channels in 26 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Alpha tags
GPS connectivity
Detachable front panel
USB programmable
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Reviews & stories

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM ID-E880. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the ICOM ID-E880 might be around:

  • EUR 392.00
Price Condition Year User
EUR 529.00 New / Good 2010 thiecom.de
EUR 478.00 New / Mint 2013 thiecom.de
