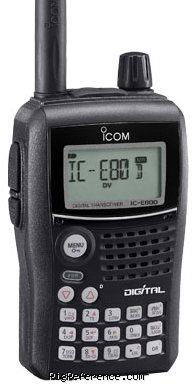

ICOM IC-E80D

Handheld VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (2) Compare

Find ICOM IC-E80D rigs and spare parts on eBay

Find the ICOM IC-E80D on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

The ICOM IC-E80D D-Star handheld is the European version of the ICOM IC-80AD.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 1052 channels in 26 bank(s)

Receiver

RX-range: 0.495–999.990MHz MHz
Modulations: AM FM W-FM DV
Sensitivity: FM (at 12dB SINAD, 3.5kHz DEV)
1.625–29.995MHz 0.4μV
30.000–75.995MHz 0.25μV
76.000–117.995MHz 0.25μV
118.000–173.995MHz 0.14μV
174.000–259.995MHz 0.32μV
260.000–349.995MHz 0.32μV
350.000–469.995MHz 0.16μV
470.000–599.995MHz 0.32μV
600.000–999.995MHz 0.56μV

W-FM (at 12dB SINAD, 52.5kHz DEV)
76.000–108.000MHz 1μV
175.000–221.995MHz 1.8μV
470.000–770.000MHz 2.5μV

AM (at 10dB S/N, 30% Mod.)
0.495–4.995MHz 1.3μV
5.000–29.995MHz 0.56μV
118.000–137.000MHz 0.5μV
222.000–246.995MHz 0.79μV
247.000–329.995MHz 1μV

DV (D-Star) (at BER 1%, 4.8kbps)
VHF (Ham band) 0.22μV
UHF (Ham band) 0.22μV
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144–146 / 430–440MHz
Modulations: FM
RF-output: 5W, 2.5W, 0.5W, 0.1W

Connections

Antenna: SMA
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 5.5-11.5V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 58.4 × 103 × 34.2 mm (2.30 × 4.06 × 1.35 in)
Weight: 290 gr (10.2 oz) with antenna and BP-217
Form factor: Handheld
Manufactured: Between 2010 and 201x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: DTMF and CTCSS
PC-programmable
8-character alpha tags
IPX4 water-resistant
Accessories: -
RigReference ID: 5160
MPN: ICOM-IC-E000080D

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-E80D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-E80D is around:

EUR 68.00 ~ EUR 120.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2013	EUR 379.00	New / Mint	thiecom.de
2010	EUR 429.00	New / Good	thiecom.de
