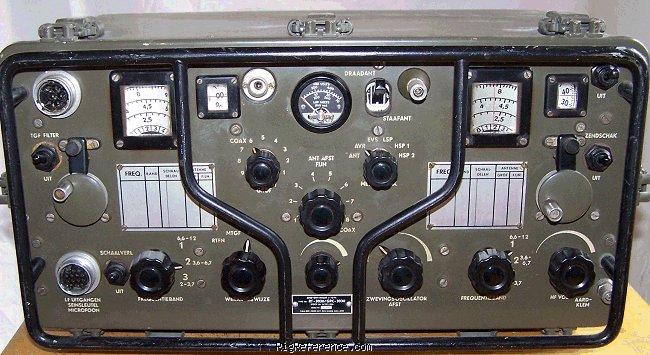

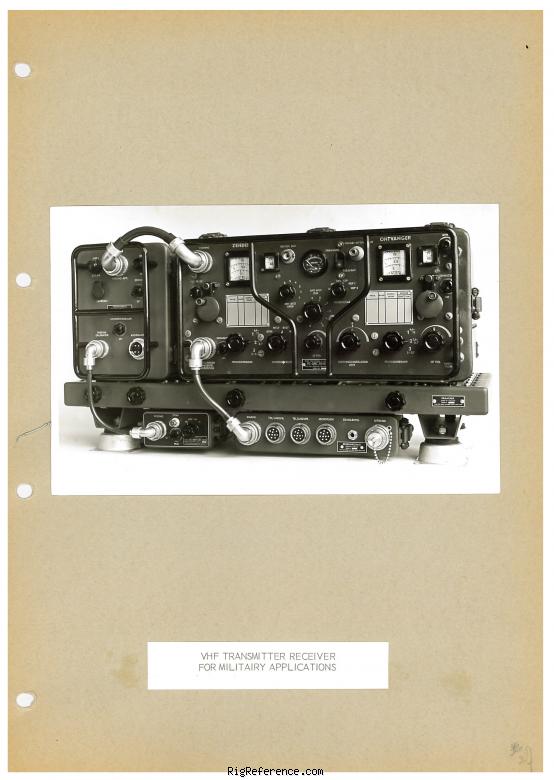

The GRC-3030 was used by the Dutch armed forces between 1958 and 1970 as a vehicle mounted radio. It was replacing the aged Wireless Set 19. The GRC-3030 covers 2-12 MHz in 3 bands: 2-3.7, 3.6-6.7 and 6.6-12 MHz and supports AM and CW. The DY-3030 / GRC-3030 power supply unit converts 24V DC to the required internal voltages.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
2-12 MHz
Modulations
AM   CW
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Single conversion
IF-frequencies
465 kHz
Image rejection
?
Audio output
?

Transmitter

TX-range
2-12 MHz
Modulations
AM   CW
RF-output
10/12.5 W

Connections

Antenna
BNC + Proprietary (military)
Impedance
50Ω
Other
-

Electrical

Power requirements
24V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
245 × 475 × 295 mm (9.65 × 18.70 × 11.61 in)
Weight
21.50 kg (47.4 lbs)
Form factor
Mobile
Manufactured
Between 1958 and 1970 in Netherlands

Other features

Usage
Military communication
Features + options
-
Accessories
-
RigReference ID
5179
MPN
VAN-DER-HEEM-GRC-003030

Manuals, diagrams and brochures

GRC-3030 Circuit Diagram PDF - Unknown size, submitted by RigReference
GRC-3030 Alignment procedure (Dutch) PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Van der Heem GRC-3030. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Van der Heem GRC-3030 is around:

  • EUR 24.00 ~ EUR 19.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2011 EUR 250.00 Used / Fair elmer
2010 EUR 150.00 Used / Okay elmer
2009 EUR 150.00 Used / Fair elmer
