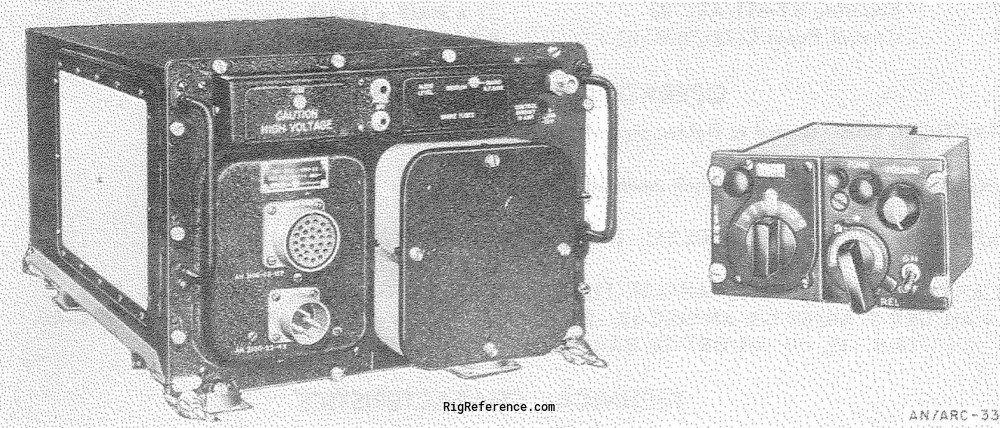

Air-to-ground UHF radio set; used in B-52, F-86F. The set has 20 crystal controlled channels, out of 1750 available working frequencies.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
100 kHz
Memories
20 channels in 1 bank(s)

Receiver

RX-range
225-399.9 MHz
Modulations
AM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
225-399.9 MHz
Modulations
AM
RF-output
20 W

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
27.5 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile
Manufactured
Between 1952 and 195x in USA

Other features

Usage
Military communication
Features + options
-
Accessories
-
RigReference ID
5687
MPN
MILITARY-AN/ARC-000033

Manuals, diagrams and brochures

AN/ARC-33 PDF - 278.3 kB, submitted by RigReference
