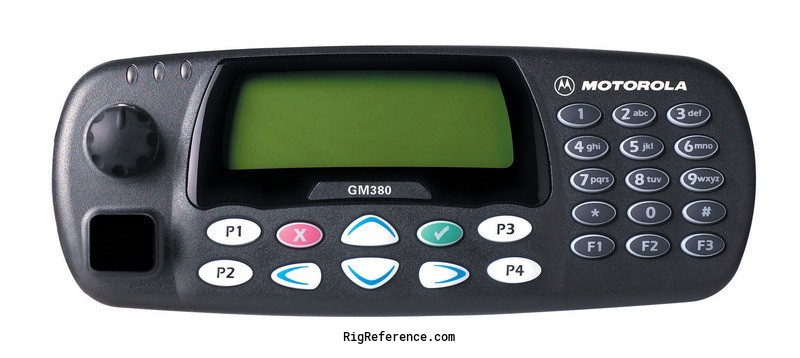

Motorola GM-380

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Motorola GM-380 is a Mobile VHF/UHF Transceiver. It covers 136-174 MHz and 403-470 MHz for both RX and TX. Image rejection is 70 dB. RF output is selectable from 1-25 W. It operates on 10.8-15.6 VDC. Features include CTCSS/PL and Select 5/5-tone selcall, VOX, DTMF, voice encryption and trunking options. Dimensions are 72 × 185 × 188 mm and the weight is 1.4 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 136-174 MHz
403-470 MHz
Modulations: FM
Sensitivity: < 0.3 µV (12 dB SINAD) ETS
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 70 dB
Audio output: ?

Transmitter

TX-range: 136-174 MHz
403-470 MHz
Modulations: FM
RF-output: 1-25 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 10.8-15.6 VDC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 185 × 72 × 188 mm (7.28 × 2.83 × 7.40 in)
Weight: 1.40 kg (3.1 lbs)
Form factor: Mobile
Manufactured: Between 199x and 20xx

Other features

Usage: Commercial / Land mobile communication
Features + options: CTCSS/PL and Select 5/5-tone selcall. VOX. DTMF. Voice encryption and trunking options.
Accessories: -
RigReference ID: 5213
MPN: MOTOROLA-GM-000380
