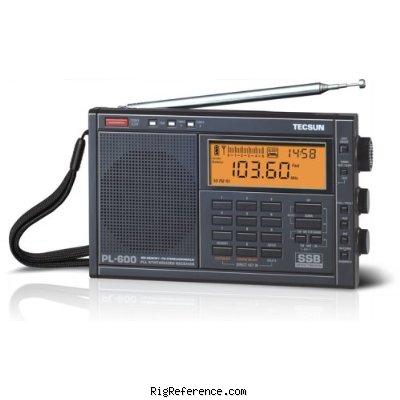

The Tecsun PL-600 is a handheld HF/VHF receiver. It covers 100-519 / 522-1620 kHz, 1.7-30 MHz and 87-108 MHz frequency ranges with tuning steps of 9, 10 or 100 kHz. The audio output is 1 W. It has 1 memory bank with 600 channels. The receiver requires 6V DC (4 × R6 batteries) and draws 300 mA in receive mode. Dimensions are 117 × 188 × 30 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 9 / 10 / 100 kHz
- Memories
- 600 channels in 1 bank(s)
Receiver
- RX-range
- 100-519 / 522-1620 kHz / 1.7-30 / 87-108 MHz
- Modulations
- AM FM W-FM Stereo SSB
- Sensitivity
- 3 µV
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1 W
Connections
- Antenna
- Built-in telescopic
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 6V DC (4 × R6 batteries)
- Current drain RX
- 300 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 188 × 117 × 30 mm (7.40 × 4.61 × 1.18 in)
- Weight
- 450 gr (15.9 oz)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5235
- MPN
- TECSUN-PL-000600
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Outstanding for the price. | 12 years ago by Radio10 | |
| A very nice surprise at a close-out price. | 13 years ago by nikonweasel | |
| Great mini communications receiver | 13 years ago by lanbe8 | |
| Not a very good buy. | 15 years ago by W0IW |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tecsun PL-600. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Tecsun PL-600 in Good condition is around:
- USD 48 ~ USD 56
These estimates are based on the following prices:
