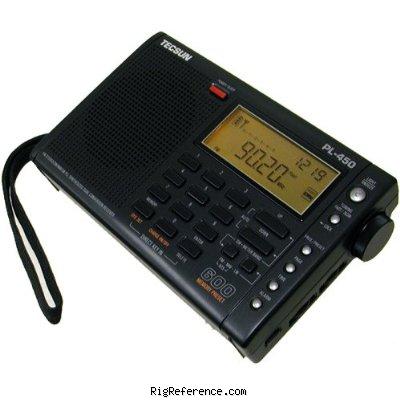

Tecsun PL-450

Handheld HF/VHF Receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Tecsun PL-450 rigs and spare parts on eBay

The Tecsun PL-450 is a handheld HF/VHF receiver. It covers 522-1620 kHz / 1.7-30 MHz / 87-108 MHz frequency range with 9 / 10 / 100 kHz tuning steps. The receiver features 1 memory bank with 600 channels and has a 1 W audio output. It requires 4.5V DC (3 × R6 batteries) for power. Dimensions are 86 × 142 × 28 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 9 / 10 / 100 kHz
Memories: 600 channels in 1 bank(s)

Receiver

RX-range: 522-1620 kHz / 1.7-30 / 87-108 MHz
Modulations: AM FM W-FM Stereo SSB
Sensitivity: 3 µV
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 1 W

Connections

Antenna: Built-in telescopic
Impedance: 50Ω
Other: -

Electrical

Power requirements: 4.5V DC (3 × R6 batteries)
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 142 × 86 × 28 mm (5.59 × 3.39 × 1.10 in)
Weight: 453 gr (16.0 oz)
Form factor: Handheld
Manufactured: Between 20xx and 20xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5236
MPN: TECSUN-PL-000450
