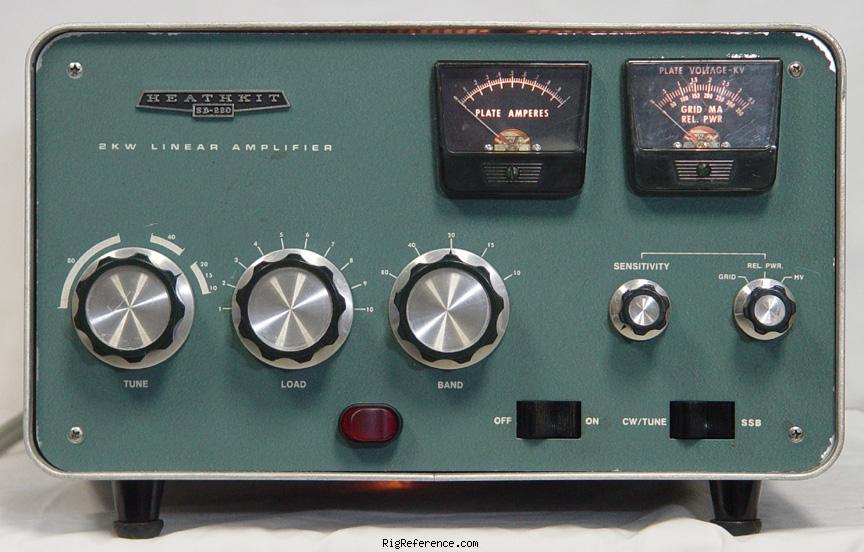

Heathkit SB-220

Desktop Shortwave Linear Amplifier

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Heathkit SB-220 rigs and spare parts on eBay Find the Heathkit SB-220 on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
?
TX-range
80-10m
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
-
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
CW   SSB
RF-Output
SSB: 2 kW PEP, CW: 1 kW (with 100 W drive)

Connections

Antenna
SO-239
Impedance
50/75Ω

Electrical

Power requirements
Mains (120/240 V AC)
Current drain RX
20A @ 120V, 10A @ 240V
TX
?

Physical

Dimensions (w×h×d)
378 × 209 × 398 mm (14.88 × 8.23 × 15.67 in)
Weight
21.70 kg (47.9 lbs)
Form factor
Base Station
Manufactured
Between 1970 and 197x in USA
MPN
HEATHKIT-SB-000220

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

Heathkit SB-220 Linear Amplifier Assembly submitted by Javier Vidaurre
Heathkit SB-220 Linear Amplifier Manual submitted by Javier Vidaurre
