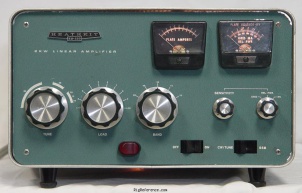

Heathkit SB-220

Desktop Shortwave Linear Amplifier

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?

Transmitter

TX-range
80-10m
Modulations
CW   SSB
RF-Output
SSB: 2 kW PEP, CW: 1 kW (with 100 W drive)

Connections

Antenna
SO-239
Impedance
50/75Ω
Other
-

Electrical

Power requirements
Mains (120/240 V AC)
Current drain RX
20A @ 120V, 10A @ 240V
TX
?

Physical

Manufactured
Between 1970 and 197x in USA
Dimensions (w×h×d)
378 × 209 × 398 mm (14.88 × 8.23 × 15.67 in)
Weight
21.70 kg (47.9 lbs)
Form factor
Base Station

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
HEATHKIT-SB-000220
