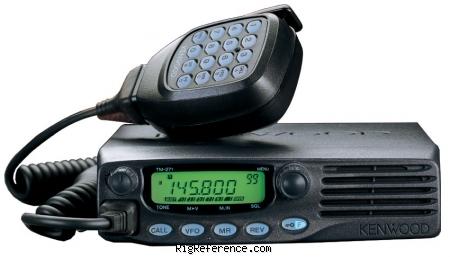

The Kenwood TM-271E is a mobile VHF transceiver. It covers 144-146 MHz for both transmit and receive. The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 49.95 MHz and 2nd: 450 kHz. The RF output is 60 W on high power. Audio output is 2 W. It requires 13.8V DC and draws 1 A in receive and 13 A max in transmit. Dimensions are 43 × 160 × 137 mm excl. protrusions. The weight is 1.2 kg.

General characteristics

HAM bands
2m
Frequency stability
±2,5 p.p.m. (-20 °C bis +60 °C)
Tuning steps
?
Memories
?

Receiver

RX-range
144-146 MHz
Modulations
FM
Sensitivity
0.18 µV (12 dB SINAD)
Selectivity
12 kHz (-6 dB)
30 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 49.95 MHz
2nd: 450 kHz
Image rejection
?
Audio output
2 W

Transmitter

TX-range
144-146 MHz
Modulations
FM
RF-output
High: 60 W, Medium: ? W, Low: ? W

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
1 A
TX
13 A max

Physical

Dimensions (w×h×d)
160 × 43 × 137 mm (6.30 × 1.69 × 5.39 in) excl. protrusions
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile
Manufactured
Between 2003 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5272
MPN
KENWOOD-TM-000271E

Manuals, diagrams and brochures

Kenwood TM-271 instruction manual PDF - Unknown size, submitted by RigReference
Kenwood TM-271 service manual PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-271E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TM-271E is around:

  • EUR 31.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 EUR 239.00 New / Good thiecom.de
