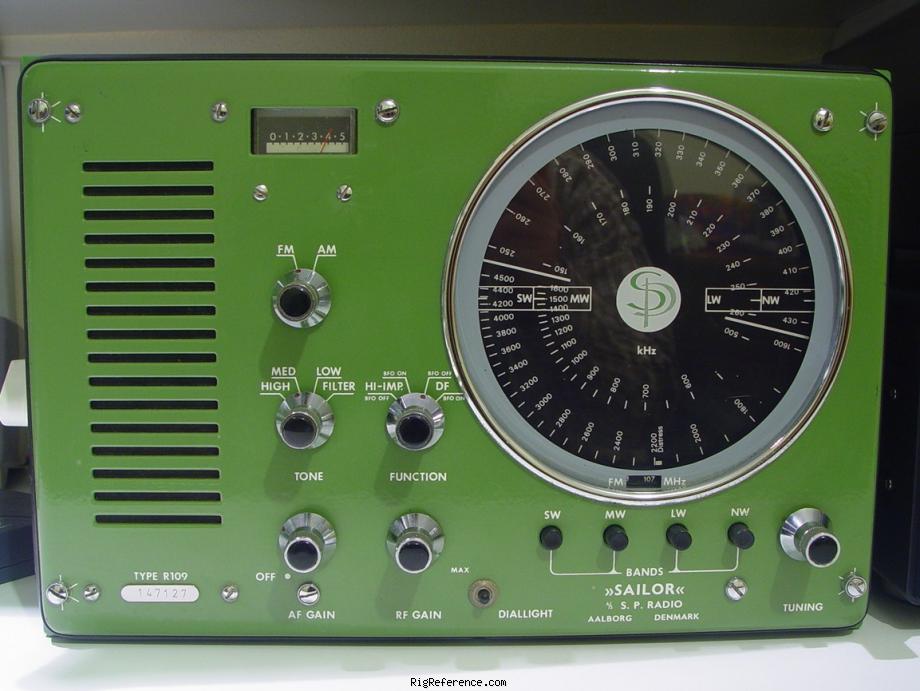

The Sailor R109 is a desktop shortwave receiver covering 150-4500 kHz in 4 bands and 88-108 MHz. It features continuous tuning steps, a direction finding facility, and an FM broadcast band readout. The receiver weighs 9 kg and requires 12-32 V DC or 6×1.5 volt battery power. Dimensions are 230 × 350 × 180 mm.
General characteristics
- HAM bands
- None
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 150-4500 kHz in 4 bands
88-108 MHz - Modulations
- AM FM CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- TV-antenne
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements

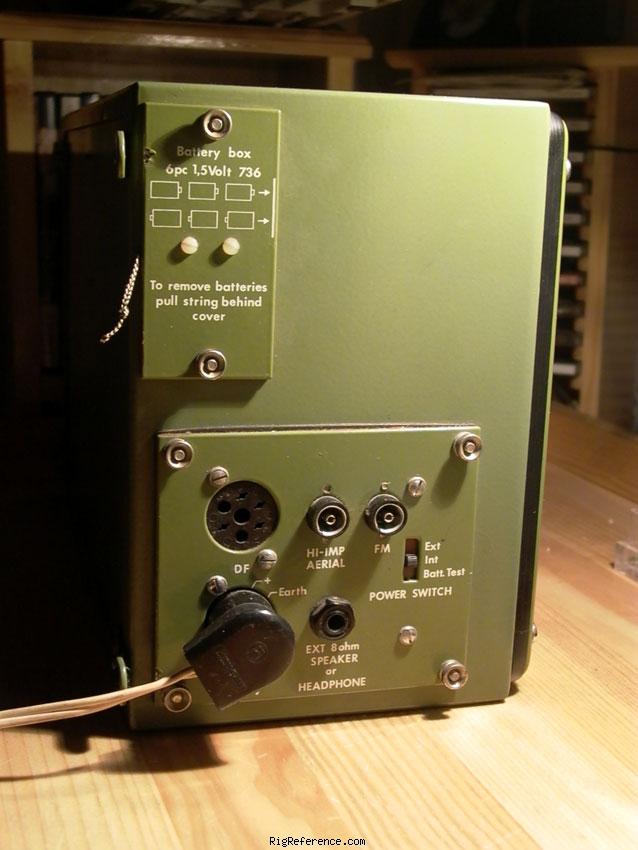

- 12-32 V DC, 6×1.5 volt battery
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 350 × 230 × 180 mm (13.78 × 9.06 × 7.09 in)
- Weight
- 9.00 kg (19.9 lbs)
- Form factor
- Mobile
- Manufactured
- Between 197x and 197x in Denmark
Other features
- Usage
- Marine / Navy
- Features + options
- Direction Finding facility
FM broadcast band readout in small window at the bottom of round dial window - Accessories
- -
- RigReference ID
- 5313
- MPN
- SAILOR-R000109
Manuals, diagrams and brochures
- Sailor R109 PDF - 5.39 MB, submitted by Mats Karlsson
- Sailor R108 R109 (sales Brochure) PDF - 2.16 MB, submitted by Annard
- Upload relevant documents
