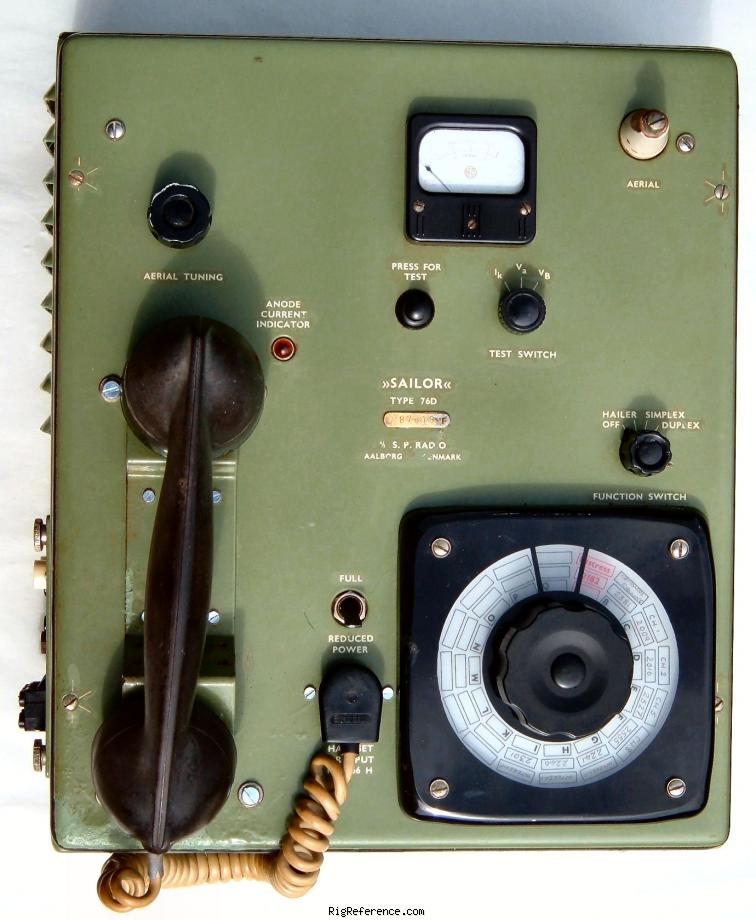

The Sailor 76D has 16 crystal controlled channels in the HF marine band. The set is fully solid state, except for the tube RF power amplifier. The built-in vario-meter tunes the random length wire antenna to the desired frequency.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
16 channels in 1 bank(s)

Receiver

RX-range
2.009-2.555 MHz
Modulations
AM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
2.009-2.555 MHz
Modulations
-
RF-output
?

Connections

Antenna
Clamps / screws
Impedance
50Ω
Other
-

Electrical

Power requirements
12 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
330 × 381 × 165 mm (12.99 × 15.00 × 6.50 in)
Weight
18.00 kg (39.7 lbs)
Form factor
Mobile
Manufactured
Between 19xx and 19xx in Denmark (By SP Radio)

Other features

Usage
Marine / Navy
Features + options
-
Accessories
-
RigReference ID
5319
MPN
SAILOR-000076D
