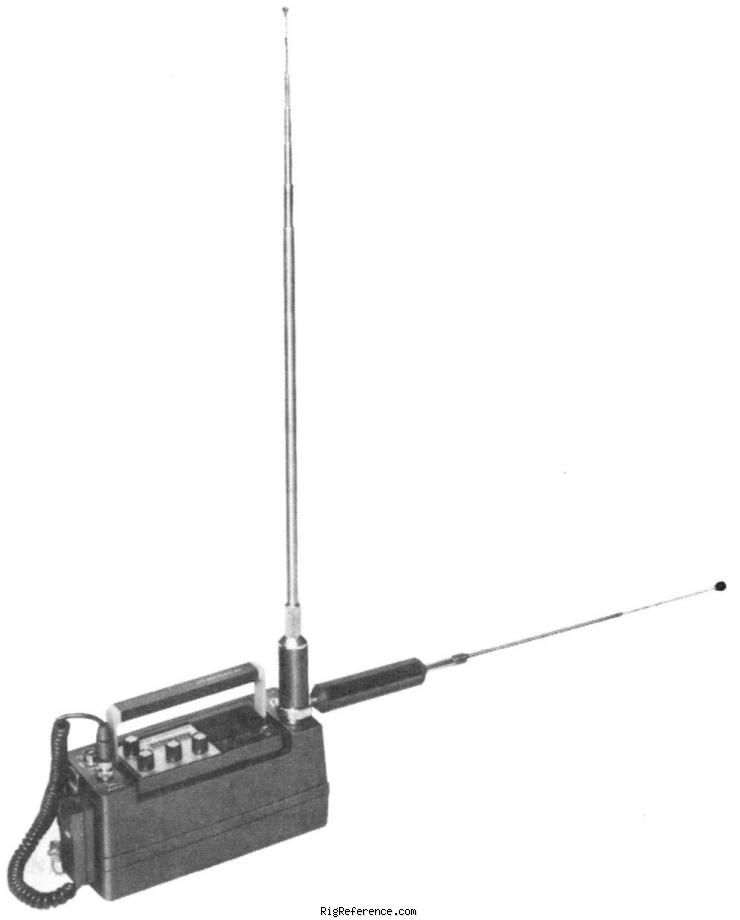

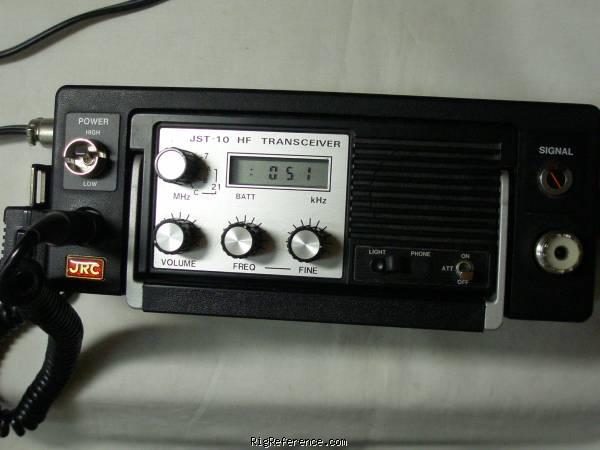

The Japan Radio Company JST-10 is a dual-band, portable, QRP HF transceiver covering 40 and 15 meters in CW and SSB modes. Frequency coverage is 7-7.1 MHz, 21-21.5, 21.15-21.30 and 21.3 to 21.45 MHz. There is an LCD display. Power output may be selected at 10 or 1 watts. Three way power includes: external 12-15 V DC 3A, 11 alkaline D cells (not supplied) or optional NBB-151 NiCd pack.
General characteristics
- HAM bands
- 40m 15m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 7-7.1 / 21-21.45 MHz
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 15 + 40m
- Modulations
- CW SSB
- RF-output
- 1/10 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12-15 V DC
- Current drain RX
- ?
- TX
- 3 A max
Physical
- Dimensions (w×h×d)
- 250 × 115 × 90 mm (9.84 × 4.53 × 3.54 in) excluding antenna
- Weight
- 2.70 kg (6.0 lbs) incl. battery and antenna
- Form factor
- Portable
- Manufactured
- Between 1982 and 1986 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5398
- MPN
- JRC-JST-000010
