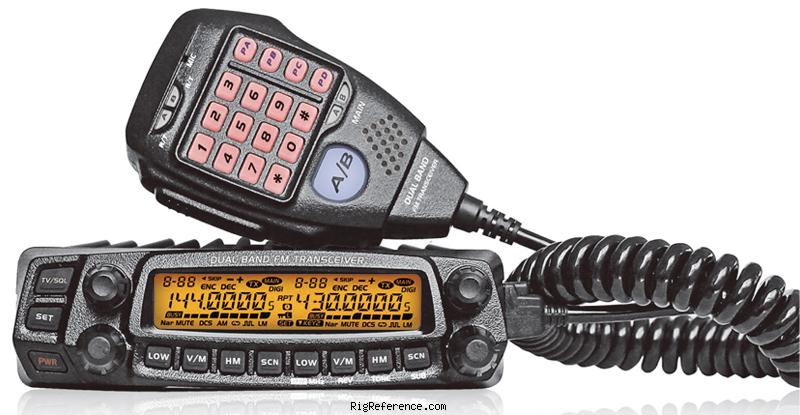

Anytone AT-5888UV Mobile dual-band VHF/UHF transceiver

 (4.6/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
118-134 / 134-174 / 200-260 / 350-400 / 400-520 MHz
TX-range
134-174 / 400-490MHz
HAM bands
2m  70cm
Stability
± 2.5 p.p.m.
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 50 kHz
Filters
-

Receiver

Modulations
AM   FM
Sensitivity
W-FM ≤ 0.25 μV (12 dB SINAD)
N-FM ≤ 0.35 μV (12 dB SINAD)
Selectivity
12.5 / 25 kHz
Receiver system
-
IF-frequencies
-
Image rejection
≥ 60 dB
Audio output
2 W @ 10% THD

Transmitter

Modulations
FM
RF-Output
55 / 35 / 10 / 5 W

Connections

Antenna
-
Impedance
50Ω

Electrical

Power requirements
13.8 V DC (±15%)
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
139 × 40 × 212 mm (5.47 × 1.57 × 8.35 in)
Weight
1.14 kg (2.5 lbs)
Form factor
Mobile
Manufactured
Between 2013 and 20xx in China
MPN

Other features

Memories
758 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

Anytone AT-5888VU English Manual submitted by RigReference

Upload relevant documents

Show other documents.

Stories & reviews

Great Radio

Anytone AT-5888UV, Mobile dual-band VHF/UHF transceiver

I love this radio, they can be found used real reasonable. They work great, but I would suggest getting the RT Systems programing software, as it runs circles around the stock software. also you need a well tuned antenna, as the high SWR circuit functions well, if the SWR is high it will shut down the TX in a hurry. over all it is a great radio, I run one in my Subaru, and one in my semi truck

Written by Buzzard on Apr 19, 2015

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2015
USD 220.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Anytone AT-5888UV. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Anytone AT-5888UV might be around:

  • USD 210.00
Price Condition Year User
USD 220.00 Used / Mint 2015 Buzzard
USD 175.00 Used / Good 2015 Buzzard
USD 220.00 Used / Mint 2015 Buzzard
