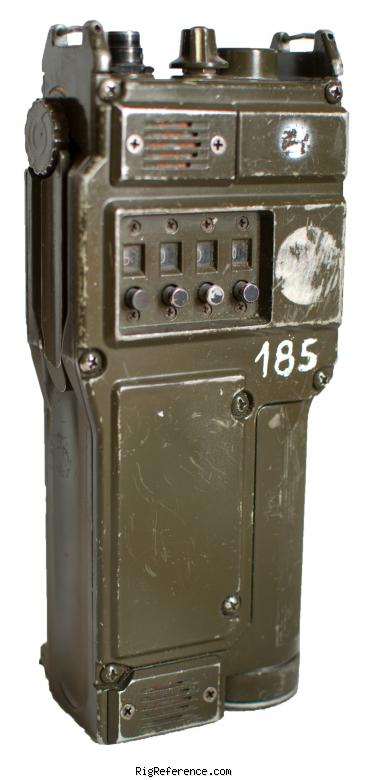

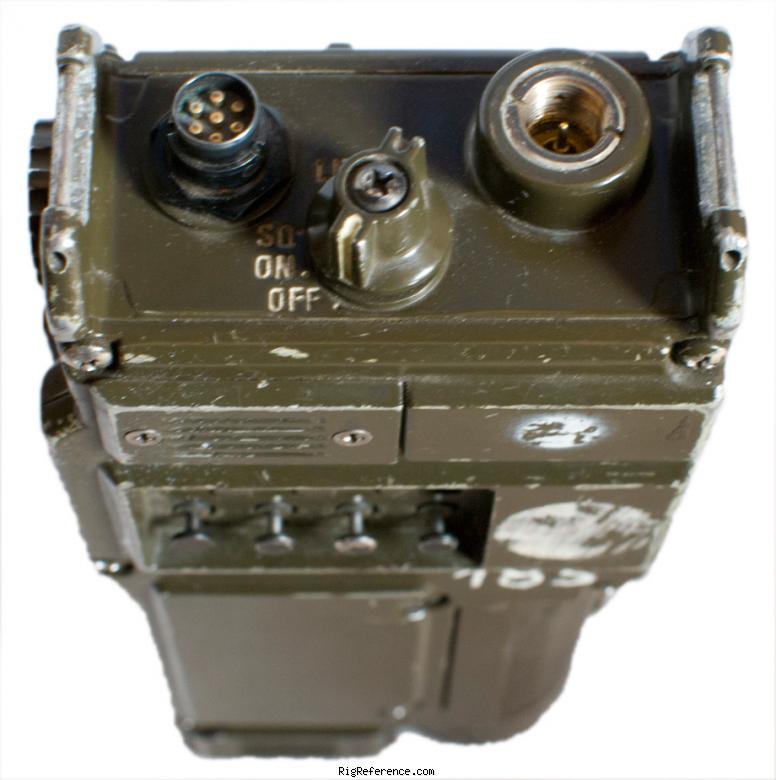

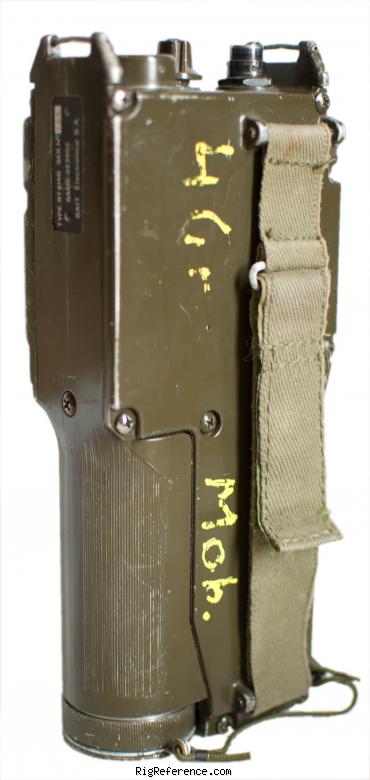

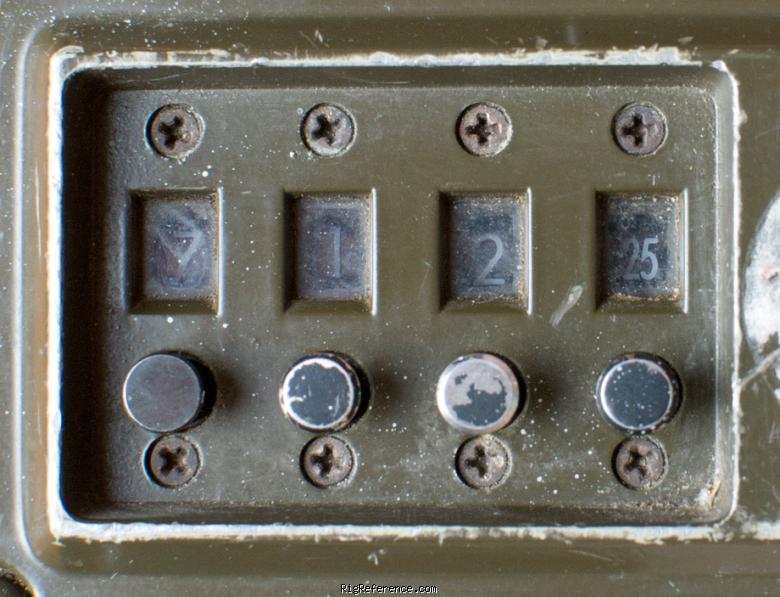

The PRC-614B was developed by the Israëlly armed forces in the 1970's as the successor of the PRC-604. The 604 was a crystal controlled radio, the 614 is fully synthesized. The 614 was usually used as a handset and carried in a small rucksack. Channel selection is done using 4 thumbwheel buttons. The top of the radio has antenna and headset connectors and a selector switch for ON, OFF, SQ and LITE. PTT and volume controls are on the left side.

S.A.I.T in Belgium built the radio under license as the RT-614B.

The similar Military PRC-613 covers 36-53 MHz.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
25 kHz
Memories
?

Receiver

RX-range
60-79.975 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
60-79.975 MHz
Modulations
FM
RF-output
1 W

Connections

Antenna
Proprietary (military)
Impedance
50Ω
Other
-

Electrical

Power requirements
10~14 V DC
Current drain RX
90 mA
TX
285 mA

Physical

Dimensions (w×h×d)
90 × 225 × 55 mm (3.54 × 8.86 × 2.17 in)
Weight
?
Form factor
Handheld
Manufactured
Between 1979 and 198x in Israël

Other features

Usage
Military communication
Features + options
Range: 8 km (5 mi) depending on conditions
150 Hz tonesquelch
Accessories
-
RigReference ID
5489
MPN
MILITARY-PRC-000614B

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Military PRC-614B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Military PRC-614B is around:

  • EUR 3.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2009 EUR 15.00 Used / Good elmer
