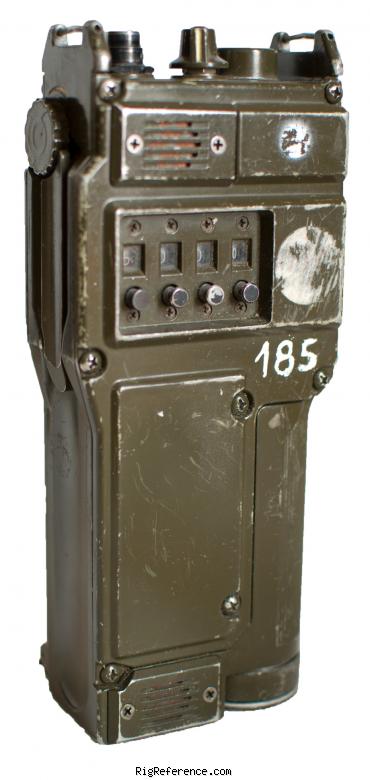

Similar to the Military PRC-614B, which covers 60-79 MHz.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
25 kHz
Memories
?

Receiver

RX-range
36-53 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
36-53 MHz
Modulations
FM
RF-output
1 W

Connections

Antenna
Proprietary (military)
Impedance
50Ω
Other
-

Electrical

Power requirements
10~14 V DC
Current drain RX
90 mA
TX
285 mA

Physical

Dimensions (w×h×d)
90 × 225 × 55 mm (3.54 × 8.86 × 2.17 in)
Weight
?
Form factor
Handheld
Manufactured
Between 1979 and 198x in Israël

Other features

Usage
Military communication
Features + options
Range: 8 km (5 mi) depending on conditions
150 Hz tonesquelch
Accessories
-
RigReference ID
5490
MPN
MILITARY-PRC-000613
