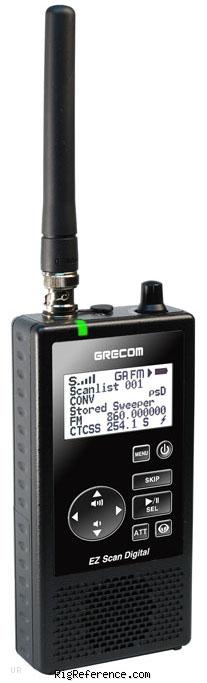

The GRE PSR-800 EZ Scan is a revolutionary approach to scanner listening. It allows you to listen to desired communications without PC or Internet programming because everything is already in the scanner! The Digital EZ Scan scanner includes a 2GB SD card inside the radio with the entire US database of trunked systems and popular conventional frequencies so you can monitor local police/fire and emergency frequencies right out of the box. So no matter where you are in the USA, you can easily and instantly access the analog trunking systems and conventional frequencies of interest.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
3.125 / 5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 25 kHz
Memories
1000 channels in bank(s) @ 70 channels/second

Receiver

RX-range
25-54 / 108-174 / 216-512 / 764-782 / 791-799 / 806-960 / 1240-1300 MHz (except cellular)
Modulations
AM   FM   N-FM   P25
Sensitivity
AM 25-27.995 MHz:
4 kHz (-6 dB), 6 kHz (-50 dB)

All other bands and modulations:
7 kHz (-6 dB), 13 kHz (-50 dB)
Selectivity
?
Filters
?
Receiver system
Triple conversion (PLL)
IF-frequencies
1st: 380.8 MHz
2nd: 21.4 MHz
3rd: 455 kHz
Image rejection
?
Audio output
?

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
4×AA or USB 5 V DC
Current drain RX
120 mA typical
TX
-

Physical

Dimensions (w×h×d)
67 × 135 × 28 mm (2.64 × 5.31 × 1.10 in)
Weight
210 gr (7.4 oz)
Form factor
Mobile
Manufactured
Between 2011 and 201x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
USB interface
Trunk Tracking (Motorola, EF Johnson, EDACS)
CTCSS / DCS
SAME Wx alerts
Spectrum sweeper
2 GB MicroSD memory card (preloaded)
Accessories
-
RigReference ID
5491
MPN
GRE-/-GRECOM-PSR-000800

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
PSR-800 initial use/impressions 12 years ago by mobil91
