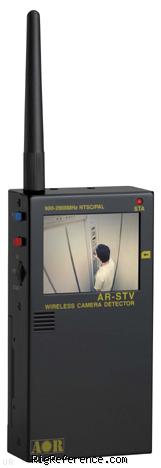

The AR-STC handheld receiver detects hidden NTSC, PAL, CCIR, EIA or scrambled reverse polarity video signals in real time. It receives and displays video signals on L-band (1.2 GHz) or S-band (2.4 GHz). The USB connector makes it easy to download stored images into a computer. Image format is 50 KB/image storing image, frequency, time and date.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 900-2800 MHz
- Modulations
- AM FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 4.8-6 V DC / 4 × AA
- Current drain RX
- 500 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 2.5 inch color LCD screen
USB
SD-card slot - Accessories
- -
- RigReference ID
- 5574
- MPN
- AOR-AR-STV
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-STV. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
