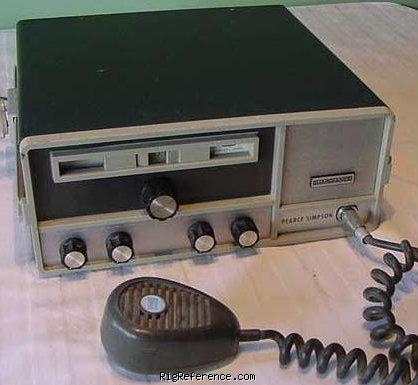

The Pearce-Simpson Guardian 23 is a transceiver covering 26.965-27.255 MHz for both receive and transmit. It features channelized tuning steps, double conversion receiver system with tubes, and IF frequencies of 1st: 6000 kHz and 2nd: 455 kHz. RF output is 5 W. It has 1 memory bank with 23 channels. It operates on mains power and weighs 7 kg. Dimensions are 110 × 296 × 267 mm.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 23 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.255 MHz
- Modulations
- AM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion, tubes
- IF-frequencies
- 1st: 6000 kHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- internal speaker
Transmitter
- TX-range
- 26.965-27.255 MHz
- Modulations
- AM
- RF-output
- 5 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 296 × 110 × 267 mm (11.65 × 4.33 × 10.51 in)
- Weight
- 7.00 kg (15.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1964 and 196x
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5597
- MPN
- PEARCE-SIMPSON-GUARDIAN-000023
Manuals, diagrams and brochures
- Pearce-Simpson Guardian 23 schematic diagram JPG - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Pearce-Simpson Guardian 23. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Pearce-Simpson Guardian 23 in Good condition is around:
- EUR 125
These estimates are based on the following prices:
