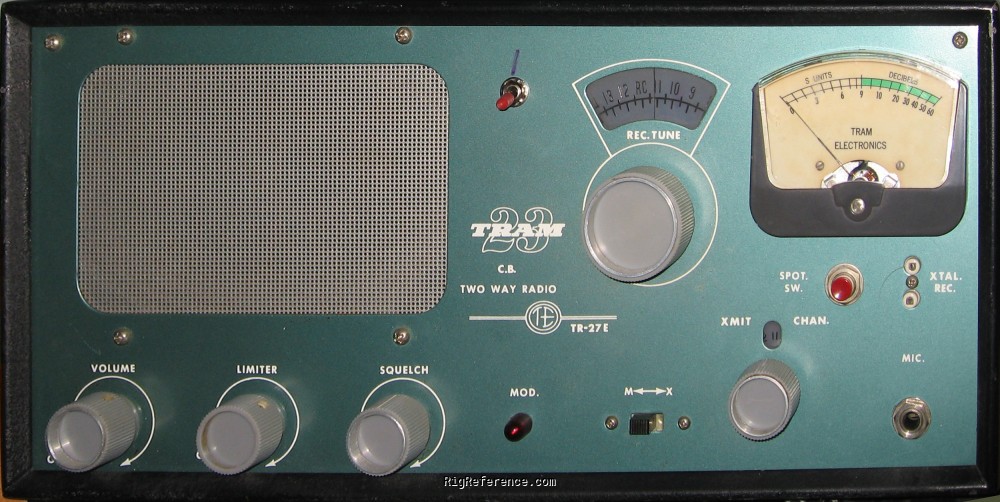

The Tram TR-27E is a base station transceiver. It operates on the 11m (CB) band with a frequency range of 26.965-27.? MHz for both receive and transmit. The RF output power is 3.5 W. It features channelized tuning steps, a Collins mechanical filter in the front end, and an image rejection ratio of 60 dB. It has 1 memory bank with 23 channels.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 23 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.? MHz
- Modulations
- AM
- Sensitivity
- 0.1 µV for 300 mW of audio
- Selectivity
- 5 kHz @ -6 dB
- Filters
- Collins mechanical filter in front end
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 26.965-27.? MHz
- Modulations
- AM
- RF-output
- 3.5 W
Connections
- Antenna
- SO-239
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1963 and 196x
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6265
- MPN
- TRAM-TR-000027E
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tram TR-27E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Tram TR-27E is around:
- USD 132 ~ USD 246
This estimate is based on similar equipment and may not reflect the exact value of this model.
