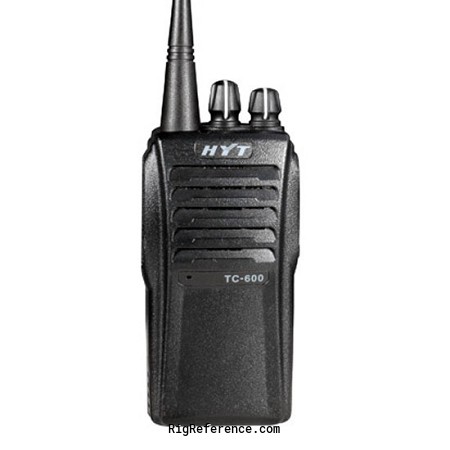

Hytera TC-600 Handheld VHF/UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
150-174 MHz
350-390 / 400-470 MHz
TX-range
150-174 MHz
350-390 / 400-470 MHz
HAM bands
2m  70cm
Stability
± 2.5 p.p.m.
Tuning steps
25 / 12.5 kHz
Filters
-

Receiver

Modulations
FM
Sensitivity
≤ 0.25 µV / 0.28 µV
Selectivity
65 dB
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
0.5 W

Transmitter

Modulations
FM
RF-Output
5 / 4 / 2 W

Connections

Antenna
-
Impedance
50Ω

Electrical

Power requirements
7.4V, 1250mAh (Li-Ion Battery)
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
111 × 54 × 34 mm (4.37 × 2.13 × 1.34 in)
Weight
249 gr (8.8 oz)
Form factor
Handheld
Manufactured
Between 201x and 201x in China
MPN

Other features

Memories
16 channels in 1 bank(s)
Usage
Commercial / Land mobile communication
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.
